63-4626-26 Crimp terminal contact female amplifier module 1-104480-6
model:
63-4626-26
brand:
TE Connectivity
Product Description
Product Model: 63-4626-26Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4626-26
Product Brand: TE Connectivity
Features

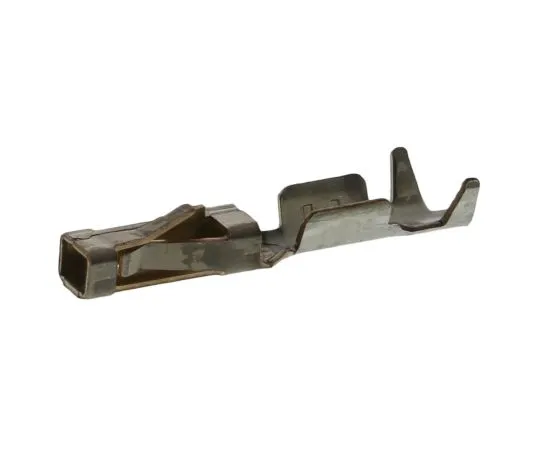

- TE Connectivity AMPMODU Short Point Crimp Snap-in Receptacle Contact
- The TE Connectivity AMPModU Short Point Contact product is designed to snap into a 1-row AMPMODU MTE housing by engaging a 0.64 mm square post of only 4.29 mm to form a complete wire crimp system or simply to be ***d as a replacement contact.
- These short-point crimp snap-in receptacle contacts are made of copper alloy and are available in gold or tin plating options. The wire has a maximum insulation diameter of 1.52 mm.
- For the receptacle housing, refer to the representative part number < 797-3160') 797-3160/.
Spec
- Quantity: 1 bag (100 pieces)
- G***er: Female
- Combined: AMPMODU Short Point/AMPMODU MTE Connector Housing
- Series: AMPMODU Short Point
- Minimum wire size mm2: 0.1 mm2
- Terminal methods: crimping
- Contact Plating: Gold
- Maximum wire size AWG: 22 AWG
- Maximum contact resistance: 12 m.OMEGA.
- Minimum operating temperature: -65 degrees C
- Maximum operating temperature: + 105 degrees C
- RoHS compliance status: Compliance
- Securities Code: 452 -600
