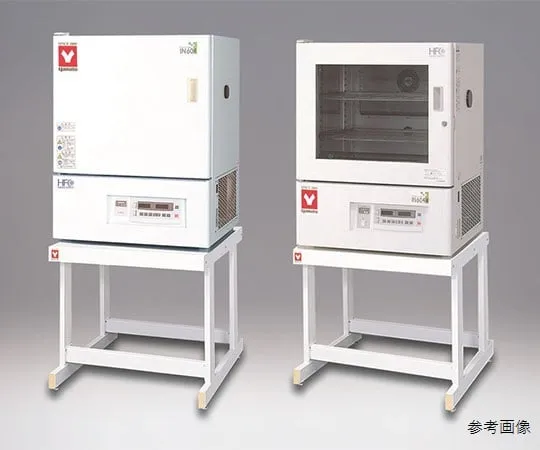

61-9660-56-90 【Global Model】Low Temperature Incubator (Programmable) IN604W IN604W
Traffic management and crowd control

61-9660-56-90 【Global Model】Low Temperature Incubator (Programmable) IN604W IN604W

model: 61-9660-56-90
brand: Yamato Scientific Co., Ltd.

Product Description

Product Model: 61-9660-56-90Product Brand: Yamato Scien […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9660-56-90
Product Brand: Yamato Scientific Co., Ltd.

Features

  • It can be ***d for a wide range of tests, from thermostatic tests to environmental tests.
  • High-precision temperature control and uniform temperature distribution in the vessel have been realized by the forced circulation of the fan.
  • Large double glass doors are ***d, and triple glass, including the inner door, improves heat retention. (IN604 W Type)
  • Convenient sliding shaker installation table (optional) for easy installation of shaker and sample loading/unloading. (IN604 W Type)
  • Indoor light for easy viewing is standard. (10 W Fluorescent Lamp) (IN604 W Type)
  • The glass inner door minimizes temperature changes when observing the sample.
  • Refrigerant R404A is ***d to comply with CFCs regulations.
  • You can defrost manually using a dedicated key or automatically using a program.
  • After the power failure returns, the power failure compensation function automatically resumes operation at the set temperature.
  • It is equipped with extensive safety functions such as a refrigerator overload relay, an indep***ent excess rise prevention device, an earth-leakage breaker with excess current, a self-diagnosis circuit (Temperature sensor abnormality, heater disconnection, SSR short circuit, main relay failure, automatic excessive rise prevention mechanism), and a buzzer warning when an abnormality occurs.

Spec

  • Circulation method: Forced air circulation
  • Operating temp. range: -10~+50℃
  • Temperature control accuracy: ±0.3℃(Refrigerator is in continuous operation) ±1.0℃(Refrigerator is in cycle operation)
  • Temp. distribution accuracy: ±1.0℃(at 37℃ refrigerator is in continuous operation)
  • Time required to reach highest temperature: +20 to +50℃ approx. 30 min
  • Time required to reach lowest temperature: +20 to -10℃ approx. 55 min
  • Observation window(WxH): 516 x 416mm
  • Internal dimentions(WxDxH): 600 x 477 x 500mm
  • External dimentions(WxDxH): 710 x 645 x 913mm
  • Internal capacity: Approx. 143L
  • No. of steps/pitch: 13 steps/30mm
  • Shelf load capacity : Approx. 15 kg/pc
  • Power supply: AC220V 50/60Hz single phase 5A (plug is not included)
  • Weight: Approx. 93kg
  • Accessories: Stainless shelf x 3, Shelf bracket x 6, Key x 2, Manual
