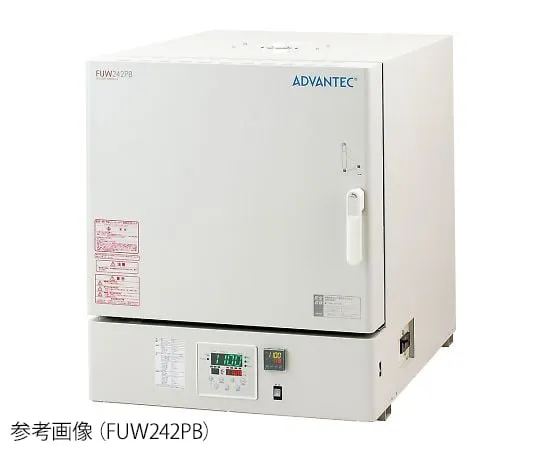

4-854-01 Electric Muffle Furnace FUW210PB
Product Description
Product Model: 4-854-01Product Brand: ADVANTEC Features […]
Contact Us
Product Details
Product Model: 4-854-01
Product Brand: ADVANTEC
Features
- Program operation is possible with easy operation.
- The heater has excellent durability beca*** it ***s a heat plate unit heater formed by integrally molding the heater and a ceramic fiber insulation plate.
- A door switch is provided as standard for safety, and the power supply to the heater is stopped when the door is opened.
Spec
- Outer dimensions (mm): 430 x 495 x 600
- Effective inner dimensions (mm): : 100 x 180 x 110 (100)
- Furo contents amount (L): about 2
- Temperature range: 100 to 1150 °C (Maximum operating temperature: 1100 °C)
- Temperature control accuracy: ±1.5 °C (At 1150 °C)
- Temperature distribution accuracy: ±3 °C (At 1000 °C)
- Form of Operation: Standard Operation, Program Operation (Up to 100 steps) 1 minute to 99 hours and 59 minutes
- Power supply: AC100V
- Accessories: Furnace floorboard x 1 piece, outlet lid x 1 piece, fixed metal bracket x 2 pieces (Mounting screw x 4 pieces)
- *Effective inner size does not include protrusions.
- *You can also make a special order for right opening. Please contact us.
