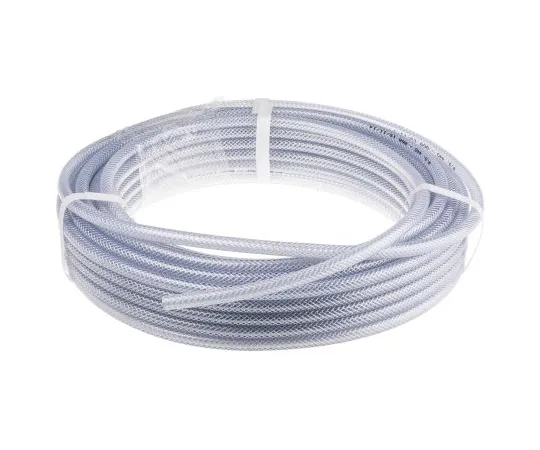

63-4624-43 RS PRO PVC Flexible Tubing, Transparent, 10mm External Diameter, 25m Long, Reinforced, 20mm B*** Radius, Chemical, 440-868
Electronic/Electrical Parts and Controll Equipments

63-4624-43 RS PRO PVC Flexible Tubing, Transparent, 10mm External Diameter, 25m Long, Reinforced, 20mm B*** Radius, Chemical, 440-868

model: 63-4624-43
brand: RS PRO

Product Description

Product Model: 63-4624-43Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4624-43
Product Brand: RS PRO

Features

  • BS6066, ISO5774
  • Operating pressure +23°C
  • RS Pro Multi-Purpose Reinforced PVC Tube
  • RS Pro PVC Tube is an EC compliant, transparent and low toxicity product widely ***d to transport food, water, chemicals, gas, fuel and oil. This multipurpose, high-quality, all-round tube is widely ***d, especially for air and water transport.
  • Features and Benefits: Excellent glass-like clarity and transparency, very easy to see
  • Highly flexible and easy to ***
  • Resistant to a wide range of chemicals, including acids and alkalis
  • Wear resistant Increased durability and abrasion resistance by thickening the walls
  • Uses carefully selected high-tensile polyester fibers at an optimum braid angle of 54 ° 44 '(54.73 °) for an effective pressure-balanced hose.
  • Compliance with EC Directives for Food Contact Use
  • RoHS compliant
  • Uses materials that do not contain cadmium or silicon to reduce contamination of drinking water
  • Operating temperature: -15→+ 60°C
  • Manufactured in compliance with ISO5774
  • Safety factor: 4:1
  • Product *** information
  • Widespread *** in the caravan industry as piping for water and chemicals
  • Widespread *** for transporting chemicals in pharmaceutical and scientific applications
  • Air applications such as pneumatic tools
  • Food - For transporting food substrates and liquids

Spec

  • Inner Diameter:4.75mm
  • Outer Diameter:10mm
  • Material:PVC
  • Colour:Transparent
  • Reinforced:Yes
  • Suitable Applications:Chemical, Compressed Air, Food, Liquid, Water
  • Length:25m
  • Minimum Operating Temperature:-15°C
  • Maximum Operating Temperature:+60°C
  • Maximum Working Pressure:27 bar
  • B*** Radius:20mm
  • Operating Temperature Range:-15 → +60 °C
  • CODE No.:440-868
