Electronic/Electrical Parts and Controll Equipments

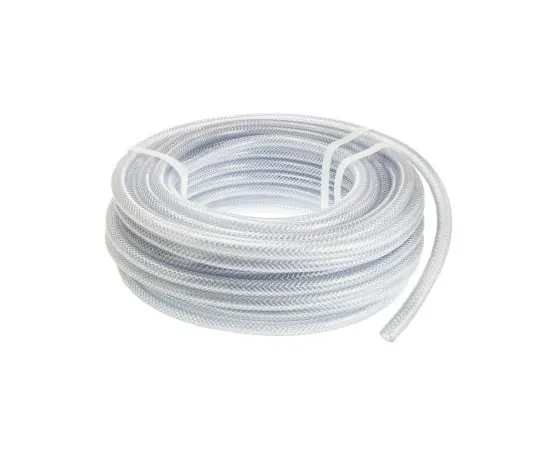

63-4624-35 RS PRO PVC Flexible Tubing, Transparent, 13.5mm External Diameter, 25m Long, Reinforced, 29mm B*** Radius, Chemical, 440-054
Product Description
Product Model: 63-4624-35Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4624-35
Product Brand: RS PRO
Features
- BS6066, ISO5774
- Operating pressure +23°C
- RS Pro Multi-Purpose Reinforced PVC Tube
- RS Pro PVC Tube is an EC compliant, transparent and low toxicity product widely ***d to transport food, water, chemicals, gas, fuel and oil. This multipurpose, high-quality, all-round tube is widely ***d, especially for air and water transport.
- Features and Benefits: Excellent glass-like clarity and transparency, very easy to see
- Highly flexible and easy to ***
- Resistant to a wide range of chemicals, including acids and alkalis
- Wear resistant Increased durability and abrasion resistance by thickening the walls
- Uses carefully selected high-tensile polyester fibers at an optimum braid angle of 54 ° 44 '(54.73 °) for an effective pressure-balanced hose.
- Compliance with EC Directives for Food Contact Use
- RoHS compliant
- Uses materials that do not contain cadmium or silicon to reduce contamination of drinking water
- Operating temperature: -15→+ 60°C
- Manufactured in compliance with ISO5774
- Safety factor: 4:1
- Product *** information
- Widespread *** in the caravan industry as piping for water and chemicals
- Widespread *** for transporting chemicals in pharmaceutical and scientific applications
- Air applications such as pneumatic tools
- Food - For transporting food substrates and liquids
Spec
- Inner Diameter:8mm
- Outer Diameter:13.5mm
- Material:PVC
- Colour:Transparent
- Reinforced:Yes
- Suitable Applications:Chemical, Compressed Air, Food, Liquid, Water
- Length:25m
- Minimum Operating Temperature:-15°C
- Maximum Operating Temperature:+60°C
- Maximum Working Pressure:16 bar
- B*** Radius:29mm
- Operating Temperature Range:-15 → +60 °C
- CODE No.:440-054
