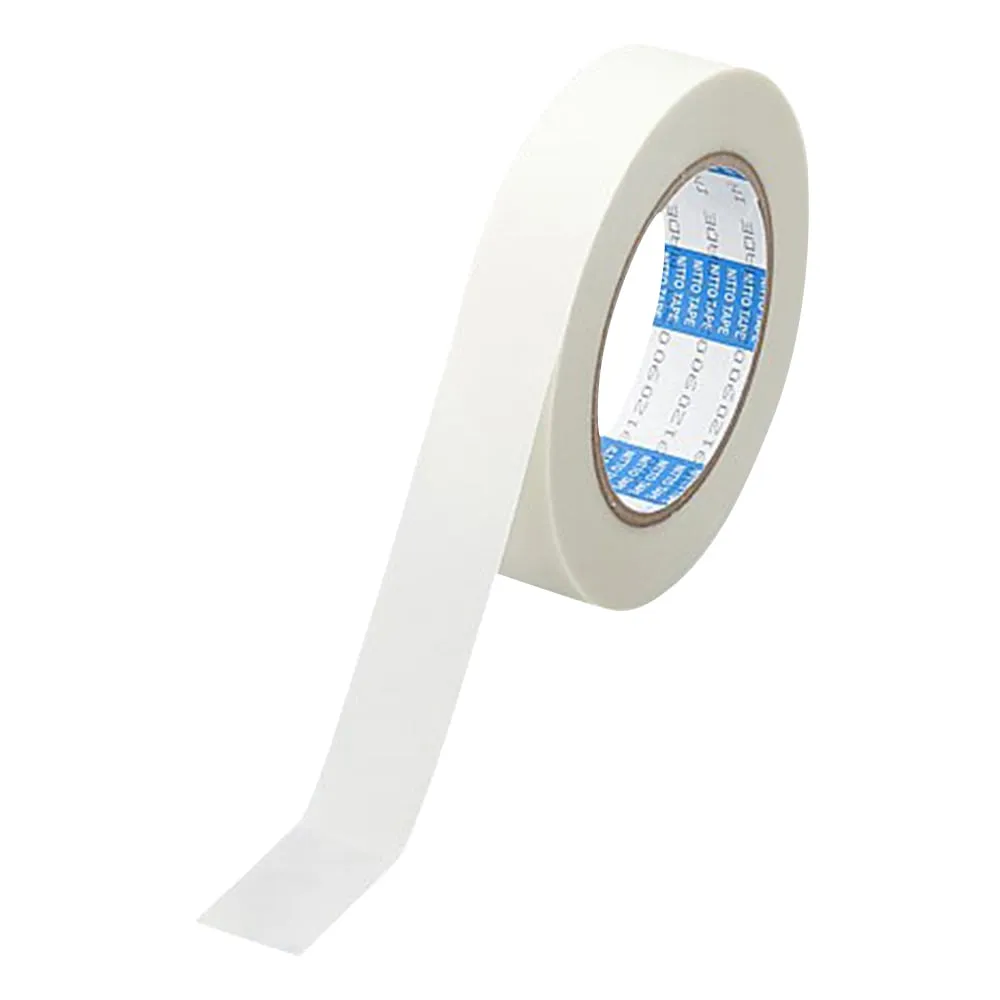

1-6533-01 Heat Resistance Glass Cloth Tape 0.191mm x 25.4mm x 33m P-212
model:
1-6533-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 1-6533-01 Features Glass cross tape for […]
Contact Us
Product Details
Product Model: 1-6533-01
Features
- Glass cross tape for high heat resistance insulation with excellent adhesion, tensile strength and solvent resistance.
- Since it bl***s well with varnish and resin, it is suitable for fixing coil lead wires, taping terminals, and insulating terminals from harness wire cables.
Spec
- Material: Base material/glass cloth, Adhesive/Silicone
- Allowable temperature limit: 205℃ (3 hours), 200℃ (continuously)
- Insulation resistance: 1500MΩ
- Flame retardant: UL standards E20392
- Thickness: 0.191mm
- Width x length: 25.4mm x 33m
- Model number: P-212
- RoHS3 (EU)2015/863 Certificates can be issued
