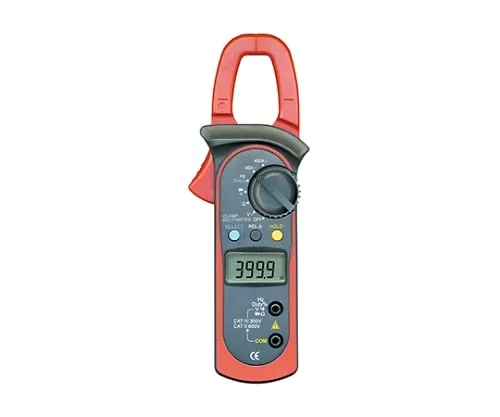

61-4672-62 Clamp Meter AD-5586 AD-5586
Product Description
Product Model: 61-4672-62Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4672-62
Product Brand: A&D
Features
- [Application]
- Ideal for DC current measurement (AD5586 only), AC current measurement, voltage terminal measurement, resistance terminal measurement, and current-carrying buzzer terminal measurement.
- 【 Features 】
- DC (AD5586 only) ・ Multi-function general-purpose clamp meter capable of measuring current
- 1999~3999 count display
- Measurement items such as DC/AC voltage, resistance, conduction, frequency, duty, and diode check dep***ing on other models
Spec
- AC current (clamp measurement): 40/400A *±(2.5%rdg + 8d) *Full accuracy is displayed
- AC current (clamp measurement): 40/400A *±(2.5%rdg + 8d) *Full accuracy is displayed
- DC voltage: 400m/4/40/400/600V *±(0.8%rdg + 1d) *Full accuracy is displayed
- AC voltage: 4/40/400/600V *±(1.2%rdg + 5d) *Full accuracy is displayed
- Resistance: 400/4k/40k/400k/4M/40MΩ *±(1.0%rdg + 2d) *Full accuracy is displayed
- Frequency: 10/100/1k/10k/100k/1M/10MHz *±(0.5%rdg + 3d) *Full accuracy is displayed
- Continuity test: Beep sound at approximately 50Ω or less
- Power supply: 6F22 type (006P type) 9V dry cell 1 pieces
- Accessories: Instruction manual, Cell (for monitor), Test lead, Strap
