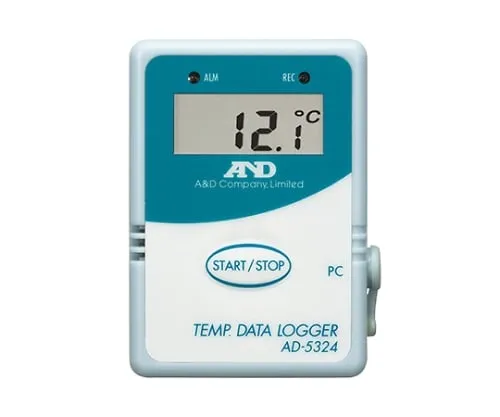

61-4672-44-20 Temperature Data Logger Extension with Calibration Certificate AD-5324
Product Description
Product Model: 61-4672-44-20Product Brand: A&D Feat […]
Contact Us
Product Details
Product Model: 61-4672-44-20
Product Brand: A&D
Features
- A data logger that can easily record and analyze temperatures.
- For temperature history management of work environments and storage environments.
- This is for expansion and does not come with a dedicated communication set.
- First, please purchase the AD-5324SET that includes the main unit, PC communication cable and communication software.
- Multiple data loggers can be added at low cost.
- The number of data memories is 4000.
- Corresponds to IP54, a water-resistant drip-proof structure.
Spec
- Display Items: Temperature
- Number of channels: 1 (internal)
- Measurement range Temperature: -40 to + 70 °C (Minimum reading 0.1 °C)
- Accuracy of measurement: ± 0.6 °C (-20 to 50 °C), ± 1.2 °C (measurement range other than -20 to 50 °C)
- Measurement interval: 1 second to 12 hours, configurable in 1-second increments
- Data Recording capacity: 4000 points (internal memory)
- Interface: USB
- Recording start method: Immediate start/reservation start/key start
- Waterproof Level: JIS Protection grade 4, IP 54 Equivalent
- Power Supply: CR2 lithium battery 1 piece
- Accessories: battery (for monitor), Owner's Manual
- *A product with a calibration certificate is an original service of Azwan which calibrates measuring instruments at the time of shipment by AS ONE or a AS ONE partner company and issues calibration certificate.
- This product is a general calibration. calibration certificate (calibration certificate, test results report, traceability system chart) is attached.
- A Japanese version of calibration certificate is included.
- Calibration point is 1 point at 25 °C. If you would like other points, please contact us separately.
