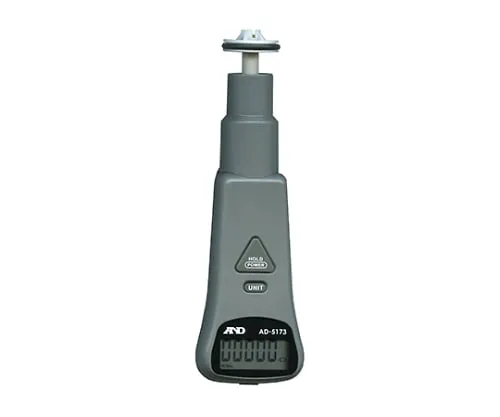

61-4672-42 Digital Tachometer AD-5173 AD-5173
Product Description
Product Model: 61-4672-42Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4672-42
Product Brand: A&D
Features
- [Application]
- For measuring the rotation of machine tools such as rotating shafts, motors, generators, gears and pumps
- [Features]
- Can easily measure the rotation speed of rotating shafts
- Non-contact reflective light system (AD5172)
- Can switch between contact and non-contact (AD5173)
- Data hold function
- Low battery display function
- Auto range function (AD5172)
- MAX and MIN value memory function (AD5173)
Spec
- Measuring method: Contact/non-contact switch available
- Display: 5 digits digital display
- Measurement range: 10.000 - 99999RPM (1.000 - 999.9M/Min)
- Resolution: 0.001/0.01/0.1/1 RPM (0.0001/0.001/0.01/0.1 M/Min)
- Measurement accuracy: ± (0.1%rdg + 2digits)
- Measurement distance: 50 - 300mm (non-contact)
- Time base: 4MHz
- Sampling: 1 second (60RPM or more), 1 second or more (10 - 60RPM)
- Power supply: 6F22 9V square type cell 1 piece
- Accessories: Instruction manual, Cell (for monitor), Attachment for measurement 3 types (O-ring, Recess type, Convex type), Reflection tape (width approx. 17mm/length approx. 60cm)
