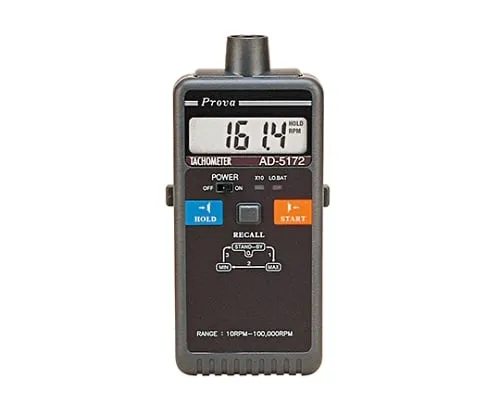

61-4672-41-24 Optical tachometer JCSS calibration certificate AD-5172
Product Description
Product Model: 61-4672-41-24Product Brand: A&D Feat […]
Contact Us
Product Details
Product Model: 61-4672-41-24
Product Brand: A&D
Features
- [Application]
- For measuring the rotation of machine tools such as rotating shafts, motors, generators, gears and pumps
- [Features]
- Easily measure rotational speed of a rotating shaft
- Non-Contact Reflected Light Type (AD5172)
- Contact/non-contact switchable (AD5173)
- data hold function
- Low battery display function
- Auto Range (AD5172)
- MAX, MIN value memory function (AD5173)
Spec
- Measurement method: Non-contact reflected light
- Measuring range: 10~ 100,000 rpm
- Resolution 0.1rpm (10~9999.9rpm), 1rpm (10,000 ~99999rpm), 10rpm (100,000 rpm or more)
- Measuring distance: 50~150 mm (maximum 300 mm)
- Power supply: 4 AA batteries
- Accessories: Owner's Manual, Battery (for monitor), Carrying Case, Reflective Tape (Dimensions: approx. 15 (W) x 230 (H) x mm, Thickness: 0.15 mm)
- *Calibration Point: Tensile/Compressive Force (2 N, 4 N, 6 N, 8 N, 10 N)
