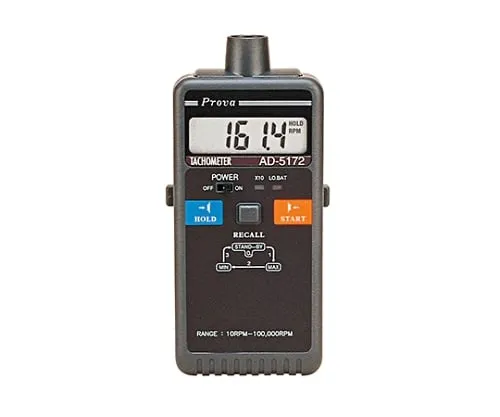

61-4672-41-20 Optical Tachometer with Calibration Certificate AD-5172
Product Description
Product Model: 61-4672-41-20Product Brand: A&D Feat […]
Contact Us
Product Details
Product Model: 61-4672-41-20
Product Brand: A&D
Features
- Optical tachometer, easy to measure rotation speed of rotation axis without contact.
- Non-contact type optical sensor.
- With MAX, MIN value memory function, data hold function, low battery display function and auto range function.
Spec
- Measuring method: Contactless Reflection
- Measurement range: 10 to 100,000 rpm
- resolution 0.1 rpm (10 to 9999.9 rpm), 1 rpm (10,000 to 99999 rpm), 10 rpm (100,000 rpm or more)
- Distance: 50 to 150 mm (maximum 300 mm)
- Power Supply: AA size type battery 4 pieces
- Accessories: Instruction Manual, battery (for monitor), Carrying Case, Reflective Tape (Dimensions: Approx. 15 (W) x 230 (H) x mm, Thickness: 0.15 mm)
- *A product with a calibration certificate is an original service of Azwan which calibrates measuring instruments at the time of shipment by AS ONE or a AS ONE partner company and issues calibration certificate.
- This product is a general calibration. calibration certificate (calibration certificate, test results report, traceability system chart) is attached.
- A Japanese version of calibration certificate is included.
