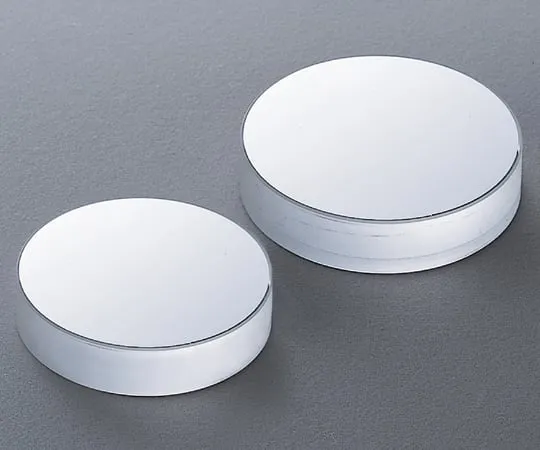

1-5592-09 Aluminum Plane Mirror λ/20 TFA-30c05-20 TFA-30C05-20
Product Description
Product Model: 1-5592-09Product Brand: SIGMAKOKI CO., L […]
Contact Us
Product Details
Product Model: 1-5592-09
Product Brand: SIGMAKOKI CO., LTD.
Features
- It has high reflection characteristics from the visible to the near-infrared, with little angular dep***ence.
- MgF2 (magnesium fluoride) is overcoated for maximum visible reflectance.
Spec
- Material: Borosilicate glass (Aluminum film + MgF2 coating)
- Tolerance: Size/0 to -0.1mm, Thickness/±0.1mm
- Substrate surface accuracy measuring method: Measured the substrate by Zygo laser interferometer system
- Surface accuracy measurement wavelength: 632.8nm
- Parallelism: within 3 minutes
- Effective surface: 90% of the real diameter
- Scratch - dig: 40-20
- Model number: TFA-30C05-20
- Size (mm): φ30 x 5t
- Substrate surface accuracy: λ/20
