Spec

• Size: 176W x 101h x 41D mm
• Weight: 600g (including battery pack)
• Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
• Number of channels: Analog 2ch + logic 4ch (insulation between analog channels and between bodies, Logic GND is common for body)
• Measurement range: 10mV - 50V/div (10 div full scale), 12 ranges
• Resolution: 1/100 of range
• Maximum rated voltage: Between terminals: DC400V, With respect to earth: AC, DC300V, measurement category II
• Frequency characteristics: DC to 50kHz (-3dB)
• Time axis: (Memory time) 100μs - 5min/div, 20 ranges, Time axis resolution 100 points/div, Extension of time axis: 3 stages for x 2 - x 10, Compression: 1/2 - 1/1, 9 stages for 000
• Recording interval: (Effective value time) 1ms - 1min, 16 settings, Sampling cycle: 200μs fixed (1000 effective value data/s for AC voltage/current), Envelope mode ON usually *The maximum value and the minimum value only are recorded for each recording interval
• Measurement function: Memory recorder (high-speed recording), Effective value recorder (50/60Hz/DC )
• Memory capacity: 12 bits x 2M word/ch
• External storage device CF card TYPE I slot x 1, Up to maximum 2GB
• Display unit: 4.3 type WQVGA-TFT color liquid crystal (480 x 272 dots)
• Display language setting: Japanese, English (Japanese for display panel)
• External interface USB: Complied with USB 2.0, Series mini B receptacle x 1
• Function: Connected to PC and a file in a CF card is transferred to PC, Control from PC is not available
• Recording print: Printing function is not available
• Power supply: AC adapter Z1005: AC100 - 240V (50/60Hz), 30VA (when AC adapter is ***d and 9780 is recharged using the body)
• Battery pack 9780: 3VA, Continuous *** time approx 2 hours (25℃ reference value, Z1005 is given priority when Z1005 are ***d together), Charging time of 200 minutes using an AC adapter (reference value at 25℃ )
• External DC power: DC10 - 16V, 10VA (Consult us for a connection cord. The wire should be 3m or less)
• Instruction manual for accessories x 1, Measurement guide x 1, Measurement guide effective value edition x 1, AC adapter Z1005 x 1, Strap x 1, USB cable x 1, CD-R (8870 wave processor) x 1, Protective sheet 9809 x 1
• *Body does not include an input cable and a battery pack. Purchase them separately dep***ing on applications. AC Adapter is included normally.

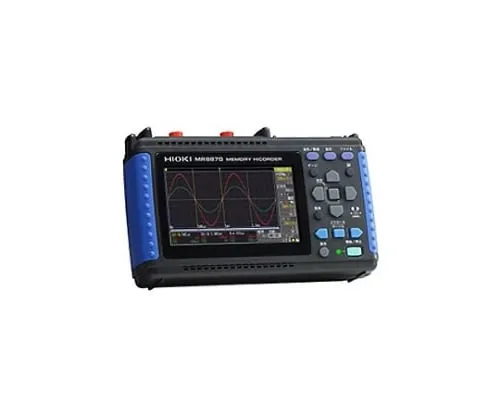

• MR8870
