Spec

• Size: 85W x 75H x 38Dmm
• Weight: 126g (excluding battery)
• Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
• Supported equipment: Used for stand alone (manual data are collected), Windows PC or Windows tablet (software CD-R included), Android smartphone or android tablet terminal, (Free download from the software Google play), *Communication distance dep***s on performances of PC and tablet (standard line of sight 30m) Used as unit (real-time measurement)
• Used as unit of LR8410 or LR8416, Acquiring and displaying data in real time, Up to 7 units can be controlled
• Communication distance: Line of sight 30m
• Number of channels: 2ch (available to set voltage and thermocouple for each ch, Insulation between ch)
• Input terminal: M3 screw terminal block
• Measurement target: Voltage, Thermocouple (K, T)
• Maximum input voltage: DC ±50V, Maximum voltage between channels DC70V
• Measurement range: [Voltage] ±50mV - ±50V, Maximum resolution 0.01mV [Thermocouple] -200℃ - 999.9℃, Thermocouple (K, T), Maximum resolution 0.1℃
• Measurement accuracy: [Voltage] ±0.05mV (50mV range) [Thermocouple] ±0.8℃ (Thermocouple class K -100℃ - 999.9℃)
• *Reference junction compensation: Internal/external switch available (when measuring thermocouple)
• *Reference junction compensation accuracy: ±0.5℃ (for internal, add to thermocouple measurement accuracy)
• *Temperature characteristics: add (measurement accuracy x 0.1)/℃ to the measurement accuracy
• Display contents: Measured value, Day, Time, Number of recording data, Maximum value, Minimum values, Average value, etc.
• Function: Alarm, Scaling, Keeping recording operation, Preventing errors in operation, Storing comments, Saving power, Password authentication
• Recording: [Capacity] 500,000 data [mode] instantaneous value recording [interval] 0.1 seconds - 30 seconds per channel, 1 minute - 60 minutes, 16 switching
• Power supply: AC adapter Z2003 (AC100V - 240V, 50Hz/60Hz), AA alkaline dry cell (LR6) x 2, External power DC5V - 13.5V (available from the USB bus power, Conversion cable is required)
• Continuous *** time: (Using AA Alkaline dry cell), (23℃ reference value) approx 2.5 months (recording interval of 1 minute, Bluetooth R OFF), About 7 days (recording interval of 1 second, Bluetooth R ON), About 2 days (recording interval of 0.1 seconds, When LR8410 or LR8416 performs measurement in real time)
• Accessories: CD-R x 1 (instruction manual, Logger utility, Wireless logger collector), Measurement guide x 1, Note on *** of radio waves x 1, AA alkaline dry cell (LR6) x 2
• *Thermocouple is sold separately.

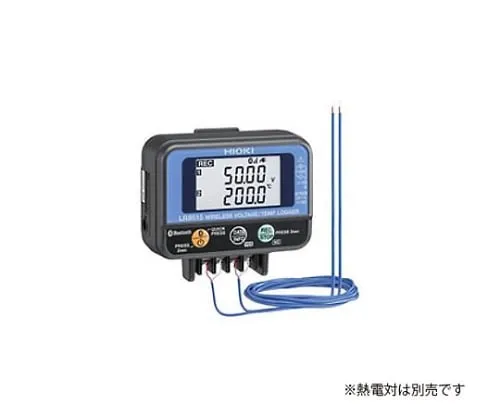

• LR8515
