Spec

• Size: 85W x 61H x 31D mm
• Weight: 95g (batteries not included)
• Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
• Supported equipment: Used for stand alone (manual data are collected), Windows PC or Windows tablet (software CD-R included), Android smartphone or android tablet terminal, (Free download from the software Google play) *Communication distance is *Communication distance dep***s on performances of PC and tablet (standard line of sight 30m) Used as unit (real-time measurement)
• Used as unit of LR8410 or LR8416, Acquiring and displaying data in real time, Up to 7 units can be controlled
• Communication distance: Line of sight 30m
• Number of channels: 2ch (GND common)
• Measurement mode: Integration (addition/instantaneous)
• Rotation speed: Logic (record 1/0 every recording interval)
• Input form: No voltage a-contact (normally-open contact), Open collector
• Voltage input: DC0V - 50V
• Measurement range: [Integration] 0 - 1000M pulse
• Maximum resolution: 1 pulse
• Rotation speed: 0 - 5000/n [r/s]
• Maximum resolution: 1/n [r/s] *n is the number of pulses per one rotation count, and the value is 1 - 1000
• Display contents: Measured value, Day, Time, Number of recording data, Maximum value, Minimum values, Average value, etc.
• Function: Alarm, Scaling, Keeping recording operation, Preventing errors in operation, Storing comments, Saving power, Password authentication
• Recording: [Capacity] 500,000 data per channel [mode] instantaneous value recording
• Interval: 0.1 seconds - 30 seconds, 1 minute - 60 minutes, 16 switching
• Power supply: AC adapter Z2003 (AC100V - 240V, 50Hz/60Hz), AA alkaline dry cell (LR6) x 2, External power DC5V - 13.5V (available from the USB bus power, Conversion cable is required)
• Continuous *** time: (Using AA Alkaline dry cell), (23℃ Reference value) about 2 months (recording interval of 1 minute, Bluetooth R OFF), About 14 days (recording interval of 1 second, Bluetooth R ON), About 5 days (recording interval of 0.1 second, When LR8410 or LR8416 performs measurement in real time)
• Accessories: CD-R x 1 (instruction manual, Logger utility, Wireless logger collector), Measurement guide x 1, Note on *** of radio waves x 1, AA alkaline dry cell (LR6) x 2, Connection cable L1010 x 2

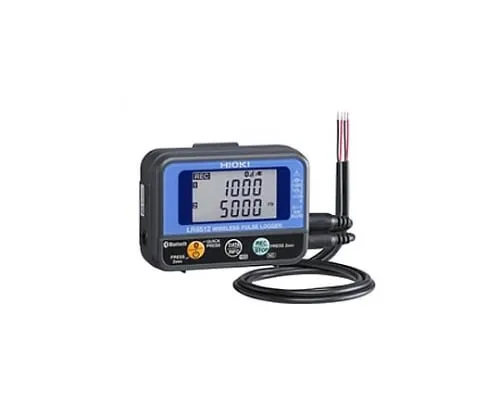

• LR8512
