Spec

• Size: 176W x 101h x 41D mm
• Weight: 550g (without loading battery pack 9780)
• Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
• Analog input section: [Number of channels] analog 10ch scanning insulation input (2 poles3 screwed terminal block)
• Voltage measurement range: ±100mV - ±60V, 1 - 5V, Maximum resolution 5μV
• Thermocouple measurement range: - 200℃ - 1800℃ (it differs dep***ing on the using sensor), Thermocouple (K, J, E, T, N, R, S, B), Maximum resolution 0.1℃
• Resistance thermometer, humidity: No function
• Maximum input voltage: AC30Vrms or DC60V
• Maximum voltage between CH,maximum rated voltage to the ground: AC30Vrms or DC60V (between input ch and chassis, Upper limit voltage to energize between ch without breaking down
• Pulse input section: [number of channels] pulse input 4ch ( connector for pulse input, Body and GND common)
• Pulse integration: 0 - 1000M pulse (no voltage a-contact, Open collector or voltage input), Maximum resolution 1 pulse
• Rotation speed variation: 0 - 5000/n (r/s), Resolution 1/n (r/s) *n is the number of pulses per one rotation, and the value is 1 - 1000
• Maximum input voltage: DC0 - 10V
• Maximum voltage between CH,maximum rated voltage to the ground: Insulation
• Recording interval: 10ms - 1 hour, 19 settings (Scan all input ch at high-speed every recording interval)
• Digital filter: OFF/50Hz/60Hz (set cut-off frequency automatically)
• Memory capacity: Internal 3.5M word, CF card/USB memory (ensure the performance only with HIOKI authentic CF card)
• External interface: USB2.0 series mini B x 1, Function: Control from PC, Transfer measurement data in CF to PC (It is not available to transfer data in USB memory to PC using USB communication)
• CF Card/copy USB memory between drives: Available
• Display unit: 4.3 type WQVGA-TFT color liquid crystal (480 x 272 dots)
• Function: CF card/save in USB memory in real time, Numeric operations, Other
• Power supply: [AC adapter] Z1005 (AC100 - 240V, 50/60Hz), 30VA Max. (including AC adapter), 10VA Max. (body only)
• Battery pack: 9780/continuous *** time 2.5h (25℃ reference value), 3VAMax.
• External power supply: DC10 - 16V, 10VA Max. (Consult us for a connection cord. The wire should be 3m or less)
• Accessories: Measurement guide x 1, CD-R (data collection application software LoggerUtility, Instruction manual PDF version) x 1, USB cable x 1, AC adapter Z1005 x 1

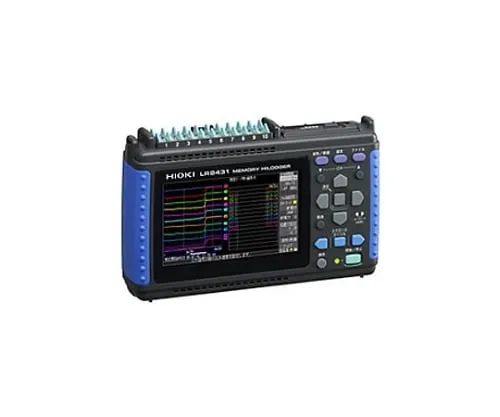

• LR8431
