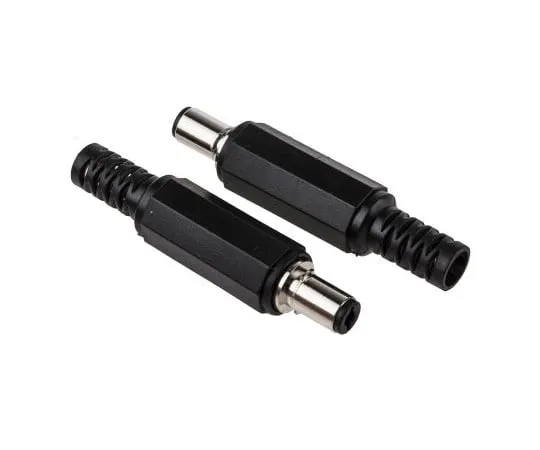

63-3000-20 RS PRO DC Power Plug Rated At 2A, 16 V dc, Cable Mount, length 34.5mm 884-0950
Electronic/Electrical Parts and Controll Equipments

63-3000-20 RS PRO DC Power Plug Rated At 2A, 16 V dc, Cable Mount, length 34.5mm 884-0950

model: 63-3000-20
brand: RS PRO

Product Description

Product Model: 63-3000-20Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3000-20
Product Brand: RS PRO

Features

  • Locking DC plug, Rewireable. Brought to you under the trusted RS Pro brand, this DC locking plug is rewireable. The DC power plug is available in 2.1 mm and 2.5 mm format. The locking DC plug is suitable for many DC power applications including laptop computers and media devices. Features and Benefits. Contact resistance 30 mΩ max. Current rating 2 Amps max. at 16 V dc Insulation resistance 100MΩ at 500 V dc Dielectric withstand voltage 500 V ac for 1 minute. Available in this Range:. Stock No. ; 884-0948 884-0948 has a rewireable 2.5 mm locking DC plug Stock No. ; 884-0950 884-0950 has a rewireable 2.1 mm locking DC plug

Spec

  • Quantity:1bag(5pieces)
  • Current Rating : 2A
  • Outer Diameter : 5.5mm
  • Voltage Rating : 16 V dc
  • Length : 34.5mm
  • Mounting Type : Cable Mount
  • Maximum Cable Diameter : 5.2mm
  • Series : FC68147
  • CODE No.:884-0950
