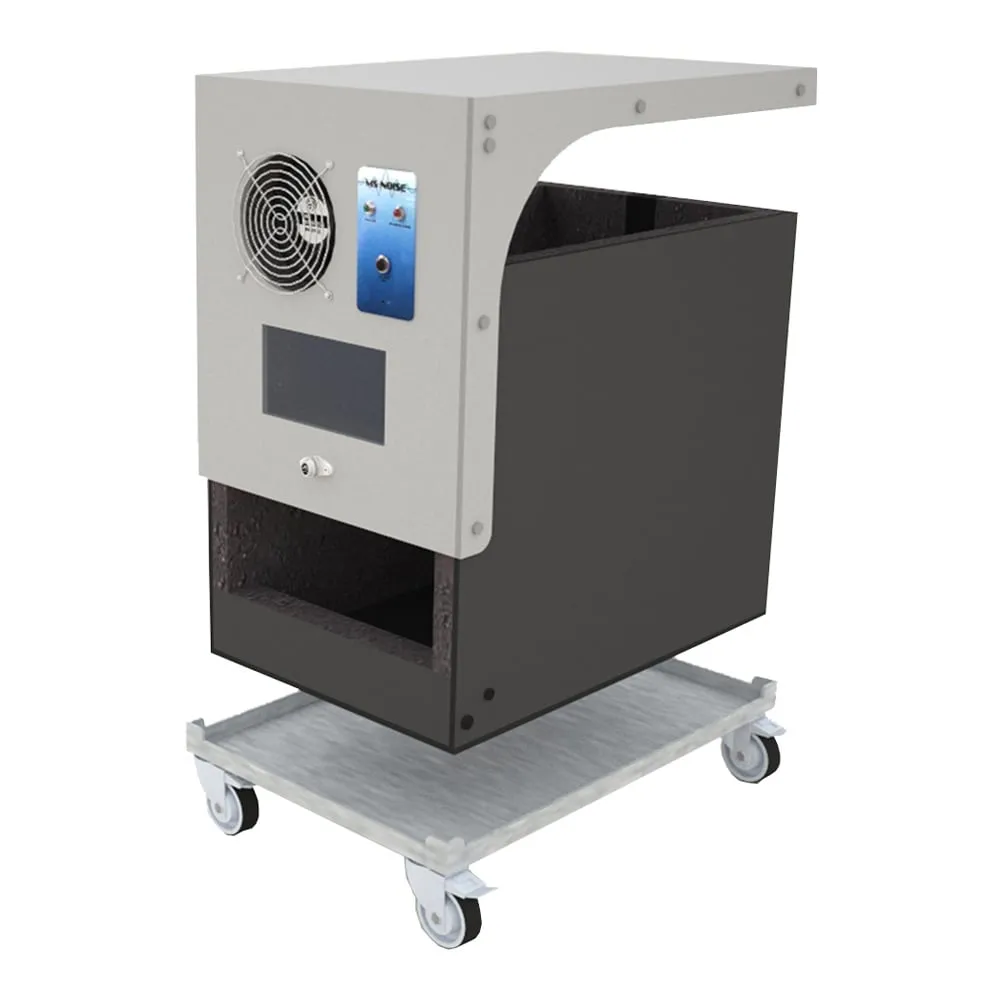

4-5374-01 Soundproof Enclosure (NRVP Series) Type S Body NRVP-BOX-S
model:
4-5374-01
category:
laboratoryinstruments
Product Description
Product Model: 4-5374-01 Features Noise is greatly redu […]
Contact Us
Product Details
Product Model: 4-5374-01
Features
- Noise is greatly reduced by simply placing the body made of special foam over the vacuum pump.
- It is equipped with an air management system capable of efficient heat release.
- The plumbing and wiring are also designed to be soundproof, and an oil drain tray (optional) with a vibration-proof mat and wheels is ***d.
- There is also a two-car storage type.
Spec
- Type: Type S body
- Specifications: Edwards and others
- Number of pieces: 1
- Material: Body/ABS UL V0 and PS Choc UL 94 V0 6 mm thickness, Foam/FMVSS 302 and DIN 4102 B3 All made of non-flammable or flame retardant materials
- Power supply: 100 VAC 50/60 Hz
- Compatible manufacturers: Edwards and others
- External dimensions (mm) * 1: 261 x 460 x 491 (491)
- Internal dimensions (mm): 251 x 380 x 371
- Weight (kg) * 2: 15
- *1 Outside dimension () is height with tray.
- *2 Weight is shown with tray.
- *Contact us for more information on vacuum pump compatible manufacturers.
*This product might require extra fees.
