Spec

• Size: Body: 100W x 150H x 42Dmm
• Weight: 670g (including battery)
• 3cm^2 magnetic field sensor: 27 x 165Lmm
• Weight: 95g
• Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
• Magnetic flux density (band): 10Hz - 400kHz/10Hz - 180Hz/2kHz - 400kHz
• Exposure level: General public/Profession
• Display: Single axis X, Y, Z (2000 counts), Composite effective value R (3464 count), Magnetic flux density (unit: T, g, A/m), Exposure level (unit: %)
• Magnetic flux density: Range, Accuracy [X, Y, Z axis]effective measurement range: 2.000μT - 2.000mT, 4 ranges
• Accuracy: ±3.5%rdg.±0.5%f.s.[R axis]effective measurement range: 3.464μT - 3.464mT, 4 ranges
• Accuracy: ±3.5%rdg.±0.5%f.s.[effective measurement frequency range], at 10Hz-400kHz mode: 50Hz - 100kHz, At 10Hz-180Hz mode: 50Hz - 60Hz, At 2kHz-400kHz mode: 5kHz - 100kHz
• Exposure level: Range, Accuracy [X, Y, Z axis]effective measurement range: 20.00% - 200.0%, 2 ranges [R axis] effective measurement range: 34.64% - 346.4%, 2 ranges
• Accuracy: ±3.5%rdg.±0.5%f.s. for Smoothededges50Hz - 1kHz.
• Accuracy: ±5.0%rdg.±0.5%f.s. for Smoothededges1kHz - 100kHz.
• Interface: Analog output: None, USB: Without
• Other: Memory function: Maximum 99 data, Slow function, Maximum value hold, Auto power OFF, ON/OFF function for buzzer sound
• Power supply: AA alkaline dry cell (LR6) x 4, 0.8VA
• Continuous *** time: 10h
• 3cm^2 magnetic field sensor: 27 x 165Lmm, 95g
• Accessories: 3cm^2 magnetic field sensor x 1, Instruction manual x 1, AA alkaline dry cell (LR6) x 4, Carrying case x 1

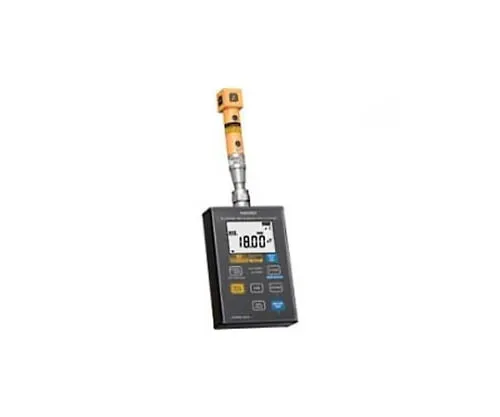

• FT3470-55
