Spec

• Size: 84W x 174H x 52Dmm
• Weight: 190g (including battery and holster)
• Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
• DC voltage: 600.0mV - 1000V, 5 ranges
• Basic accuracy: ±0.3%rdg. ±5dgt..
• AC voltage: 40 - 500Hz, 6.000V - 1000V, 4 ranges (frequency characteristics: 40Hz - 1kHz)
• Basic accuracy: ±0.9%rdg. ±3dgt. (rectified RMS, Crest factor 3 or less)
• DC current: 6.000A/10.00A, 2 ranges
• Basic accuracy: ±0.9%rdg. ±5dgt..
• AC current: 40 - 500Hz, 6.000A/10.00A, 2 ranges
• Basic accuracy: ±1.4%rdg. ±3dgt. (rectified RMS, Crest factor 3 or less)
• Frequency characteristics: 40Hz - 1kHz (when measuring AC clamp: 40 - 1kHz)
• Resistance: 600.0Ω - 60.00MΩ, 6 ranges
• Basic accuracy: ±0.7%rdg. ±5dgt..
• Capacitance: 1.000μF - 10.00mF, 5 ranges
• Basic accuracy: ±1.9%rdg. ±5dgt..
• Frequency: At ACV/ACA: 3 ranges of 99.99Hz (5Hz or more) - 9.999kHz, ACV only: 99.99kHz
• Basic accuracy: ±0.1%rdg. ±1dgt..
• Continuity check: Continuity ON threshold: 25Ω or less (buzzer sound, Red LED lighting), Continuity OFF threshold: 245Ω or more, Response time: 0.5ms or more
• Diode test: Open voltage: 5.0V or less, Measurement current: 0.5mA, Forward threshold: 0.15V - 1.5V
• Other function: Filter, Display value hold, Auto hold, Maximum/minimum/average value display, Relative display, Auto power save, USB communication (using option)
• Display: 4 digit liquid crystal display, max.6000dgt., Bar graph
• Display update rate: 5 times/s (capacitance: 0.05 - 5 times/s dep***ing on measurement value, Frequency: 1 - 2 times/s, Temperature: 1 time/s)
• Power supply: AAA alkaline dry cell (LR03) x 4
• Continuous *** time: 130h (Backlight OFF)
• Accessories: Test lead L9207-10 x 1, Holster x 1, Instruction manual x 1, AAA alkaline dry cell (LR03) x 4
• *About accuracy of DMM
• Since DMM has many measurement functions and ranges, we only describe representative values as basic accuracy. Check PDF catalogs for accuracy for each range.

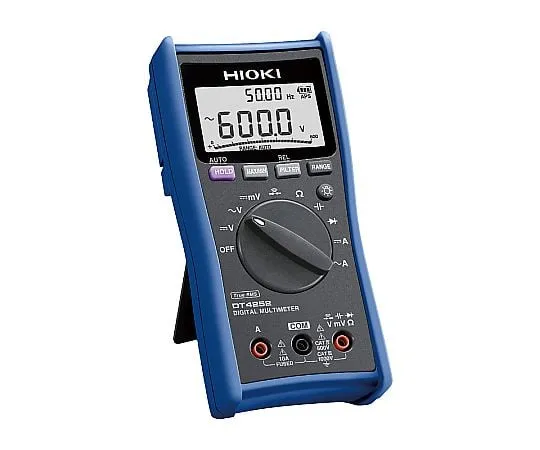

• DT4252
