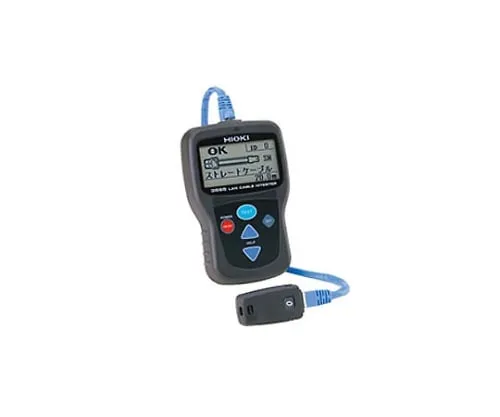

61-4374-91 LAN Cable Hitester 3665
Product Description
Product Model: 61-4374-91Product Brand: HIOKI E. E. COR […]
Contact Us
Product Details
Product Model: 61-4374-91
Product Brand: HIOKI E. E. CORPORATION
Features
- LAN Cable Testers That Can See Disconnection Locations
- Wire Map Function That Can Detect Split Pairs
- Cable Length Measurement That Can Check Disconnection Locations
- Direction Check Function That Can Identify Each Cable
Spec
- Size: 85W x 130H x 33Dmm
- Weight: 160g (excluding battery)
- Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
- Measurable cable: Twisted pair cable, Characteristic impedance 100Ω, With shield/without shield, CAT3, 4, 5, 5e, 6
- Measurable connector: RJ-45 connector
- Wire map test: Open, Short, Reverse, Transpose, Split, Detect other incorrect wiring and display it (available to check connection status and shield by using terminator 9690)
- Measurement of the length of cable: 2 - 300m
- Measurement accuracy: ±4%rdg.±1m
- Display resolution: 0.1m
- Direction measurement: Available to detect for 21 cables by using terminator 9690 (accessory) or 9690-01 or 9690-04 (Option)
- Power supply: AA alkaline dry cell (LR6) x 2, 1.4VAmax.
- Continuous *** time: 50h (measuring 1 time per 1 minute)
- Accessories: Terminator 9690 x 1, Carrying case x 1, AA alkaline dry cell (LR6) x 2, Instruction manual x 1
- 3665
