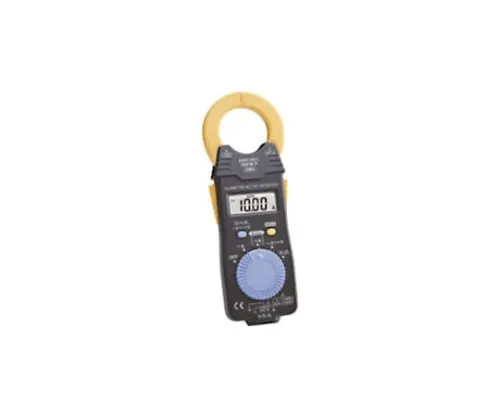

61-4374-85 Clamp-On AC/DC Hitester 3287
Product Description
Product Model: 61-4374-85Product Brand: HIOKI E. E. COR […]
Contact Us
Product Details
Product Model: 61-4374-85
Product Brand: HIOKI E. E. CORPORATION
Features
- Lightweight, Compact Cross-Direct Clamp
- 3287 Has True Effective Value Rectification
- Accurately Measures Small Currents in 10 A Range
- Has Voltage, Resistance, and Conductivity Check Functions While Compact
Spec
- Size: 57W x 180H x 16Dmm
- Weight: 170g
- Accuracy warranty period of 1 year, Adjusted accuracy warranty period of 1 year)
- DC current: 10.00/100.0A
- Basic accuracy: ±1.5%rdg. ±5dgt..
- AC current: 10.00/100.0A, (10Hz - 1kHz, Rectified true RMS)
- Basic accuracy: ±1.5%rdg. ±5dgt..
- DC voltage: 419.9m - 600V, 5 ranges
- Basic accuracy: ±1.3%rdg. ±4dgt..
- AC voltage: 4.199 - 600V, 4 ranges (30 - 500Hz, Rectified true RMS)
- Basic accuracy: ±2.3%rdg. ±8dgt..
- Resistance: 419.9Ω - 41.99MΩ, 6 ranges
- Basic accuracy: ±2%rdg. ±4dgt..
- Crest factor: 2.5 or less (150A, 100Vmax.)
- Other function: Buzzer sound with continuity (50Ω ±40Ω or less), Data hold, Auto power save, Auto zero (DCA)
- Display: LCD, max.4199dgt.
- Display update rate: 2.5 times/second
- Power supply: Coin type lithium battery (CR2032) x 1
- Continuous *** time: 25h
- Measurable conductor diameter: φ35mm or less
- Accessories: Instruction manual x 1, Test lead L9208 x 1, Carrying case 9398 x 1
- 3287
