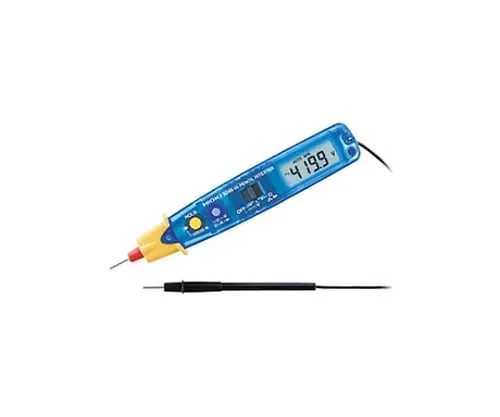

61-4374-74 Pencil Hitester 3246-70
Product Description
Product Model: 61-4374-74Product Brand: HIOKI E. E. COR […]
Contact Us
Product Details
Product Model: 61-4374-74
Product Brand: HIOKI E. E. CORPORATION
Features
- Pencil type that can be ***d even in dark places
- Pencil shaped DMM
- Ω with integrated test lead and main body
- Conductive range up to 600 V AC Overvoltage protection
- Equipped with convenient tip LED light in dark places
Spec
- Size: 30W x 182H x 26.5Dmm
- Weight: 80g
- Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
- DC voltage: 419.9mV - 600V, 5 ranges
- Basic accuracy: ±1.3%rdg. ±4dgt..
- AC voltage: 50 - 500Hz, 4.199V - 600V, 4 ranges
- Basic accuracy: : ±2.3%rdg. ±8dgt. (rectified average)
- Resistance: 419.9Ω - 41.99MΩ, 6 ranges
- Basic accuracy: ±2.0%rdg. ±4dgt..
- Continuity buzzer threshold: 50Ω ±40Ω
- Only diode forward direction determination
- Open terminal voltage: 3.4V or less
- Measurement current: 800μA or less
- Auto power save: Yes (cancel available)
- Display: Digital/LCD, max.4199dgt.
- Sample rate: 2.5 times/s
- Power supply: Coin type lithium battery (CR2032) x 1
- Continuous *** time: 150h (when measuring DCV), 30h (when measuring DCV with a cycle of light ON for 10 seconds then OFF for 20 seconds)
- Accessories: Instruction manual x 1, Coin type lithium battery (CR2032) (for built-in monitor) x 1, Cap (red/black 1 each)
- 3246-70
