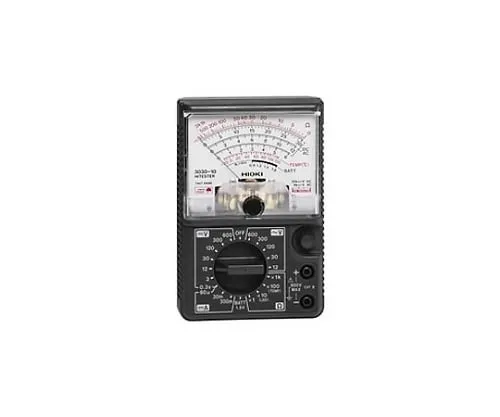

61-4374-67 Hitester 3030-10
Product Description
Product Model: 61-4374-67Product Brand: HIOKI E. E. COR […]
Contact Us
Product Details
Product Model: 61-4374-67
Product Brand: HIOKI E. E. CORPORATION
Features
- Basic Analog Testers with Enhanced Safety (20 kΩ/V)
- Drop proof that can withstand a drop of 1 m on concrete
- LED check and battery drain check possible
Spec
- Size: 95W x 141H x 39Dmm
- Weight: 280g
- Basic specification: Accuracy warranty period of 1 year, Post-adjustment accuracy warranty period of 1 year
- DC voltmeter: 0 - 0.3/3/12/30/120/300/600V
- Tolerance: Within maximum scale value ±2.5%
- Internal resistance: 20kΩ/V, 0.3V range is 16.7kΩ/V
- Maximum rating: : DC600V
- AC voltmeter: 0 - 12/30/120/300/600V (rectified average)
- Tolerance: Within maximum scale value ±2.5%, 12V range is within ±4%
- Internal resistance: 9kΩ/V
- Maximum rating: AC600V
- DC current meter: 0 - 60μA/30mA/300mA
- Tolerance: Within maximum scale value ±3%
- Internal voltage drop (nominal value): 300mV
- Resistance meter: 0 - 3kΩ, R x 1/x 10/x 100/x 1k
- Tolerance: Within ±3% of the scale length (deflection angle)
- Center scale value: 30Ω
- Battery check: 0.9 - 1.8V
- Tolerance: Within maximum scale value ±6%
- Load resistance: 10Ω
- For power supply resistance meter: AA manganese dry cell (R6P) x 2
- Accessories: Test lead L9207-30 x 1, Spare f*** x 1, AA manganese dry cell (R6P) x 2, Instruction manual x 1, Carrying case 9390 x 1
- 3030-10
Note
- Note on the *** of the temperature scale: Temperature scale (TEMP) is no longer available as the thermistor temperature probe 9021-01 is the *** of production.
