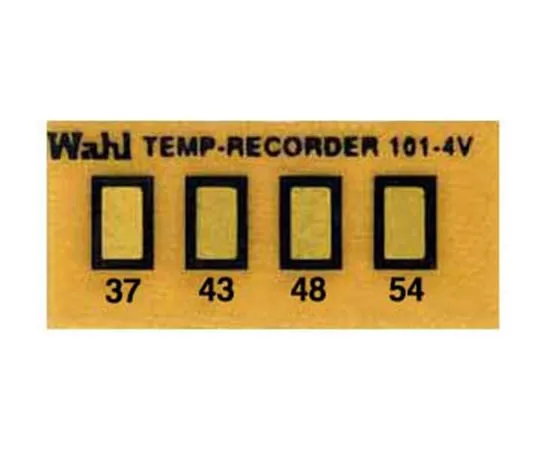

61-3815-56 4 Points Vacuum Thermometer Indicator :Temp-plate 101-4V 101-4V-037
Product Description
Product Model: 61-3815-56Product Brand: Wahl Instrument […]
Contact Us
Product Details
Product Model: 61-3815-56
Product Brand: Wahl Instruments
Features
- Record the surface temperature simply by affixing.
- Compatible in vacuum.
- Irreversible
- Covering with Kapton film to prevent plasma atmosphere.
- Can measure temperature without being affected by gas or chemicals.
- It can also be ***d inside complex mechanisms where a conventional thermometer cannot be ***d, in rotating bodies, or in objects in vacuum devices.
- Since it is printed on the back side, it prevents printing ink from scattering in vacuum (minimizes out gas).
Spec
- Display: 4 points display
- Accuracy: ±1% (100℃ or lower ±1℃)
- Response speed: 1 second (underwater, Gradual heat gradient)
- Size: 21mm x 10mm
- Thermochromic size: 2.0 x 4.0mm
- Temperature range (℃):37 - 43 - 48 - 54
- Quantity: 1 case (10 sheets)
- Irreversible
- NIST Traceable
- Comly with RoHS/ REACH
- Model number: 101-4V-037
