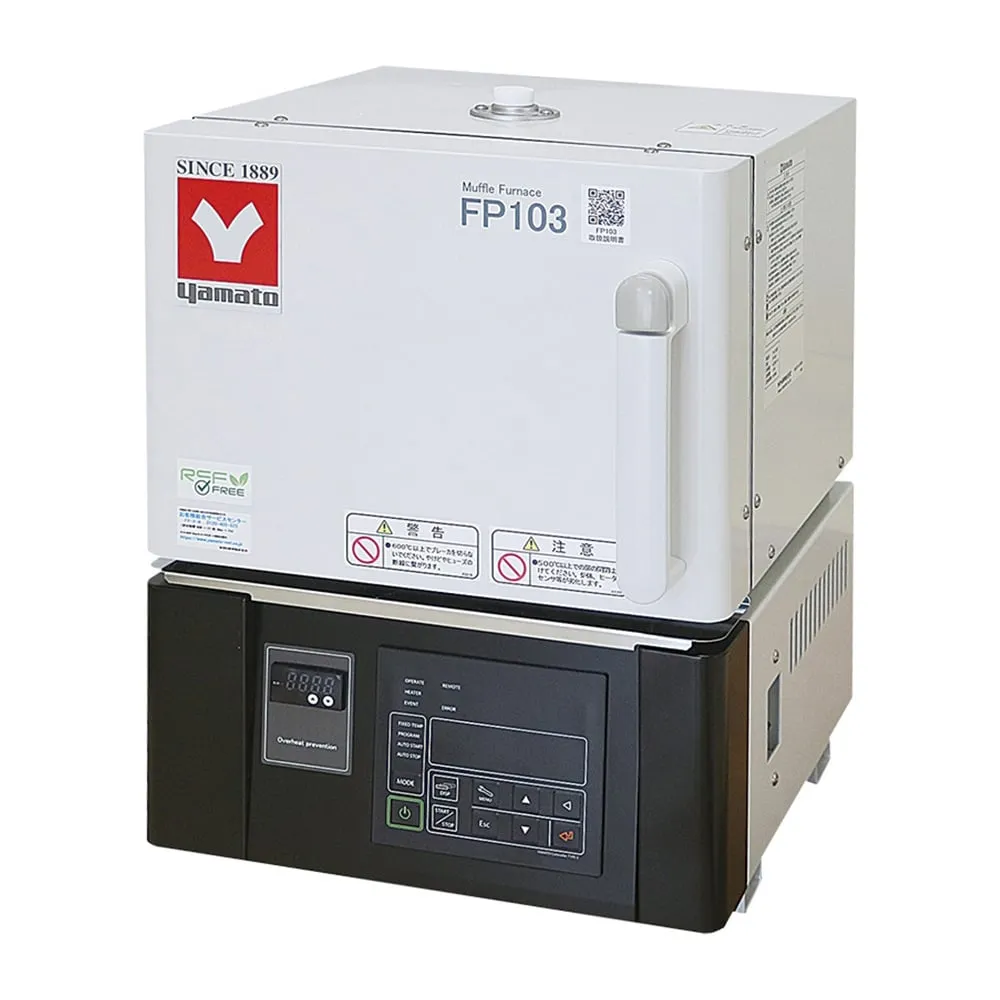

4-5284-01 Muffle furnace (RCF-free) 100 VAC 11.5 A FP103
model:
4-5284-01
category:
laboratoryinstruments
Product Description
Product Model: 4-5284-01 Features RCF-free (alumina fib […]
Contact Us
Product Details
Product Model: 4-5284-01
Features
- RCF-free (alumina fiber) for safe and secure ***.
- It is completely covered with the furnace body (insulation material), which prevents the trace components from the heater and the components that once adhered to the heater from adhering to the sample.
- In addition to the 99 step, 99 pattern program operation, there are various operation modes such as auto-start operation, auto-stop operation and repetitive operation.
Spec
- External dimensions (mm): 376 x 404 x 515
- Internal dimensions (mm): 100 x 150 x 100
- Capacity (L): 1.5
- Number of pieces: 1
- Operating temperature range: 100 ~ 1150 degrees Celsius
- Temperature distribution accuracy: +/- 4.0 degrees C (at 1150 degrees C)
- Temperature rise time: about 90 minutes
- Control method: P.I.D. control
- Heater capacity: 1.1 kW
- Furnace: Alumina fiber
- Safety devices: Self-diagnostic function (Sensor Abnormal Detection, Heater Disconnection Detection, Triac Short Circuit Detection, Main Relay Failure Detection, Automatic Overtemperature Prevention), key lock function, indep***ent overrise protection, overcurrent leakage breaker, temperature f***
- Exhaust bore: Inside diameter 20 mm (top)
- Weight: 29 kg
- Power supply: 100 VAC 11.5 A
- Current Capacity *: 15 A
- Power cord length: about 2 m outside the unit
- Accessories: Exhaust cap, temperature f***, hearth board
- *An exhaust unit (OFP 36, OFP 38) is an option.
