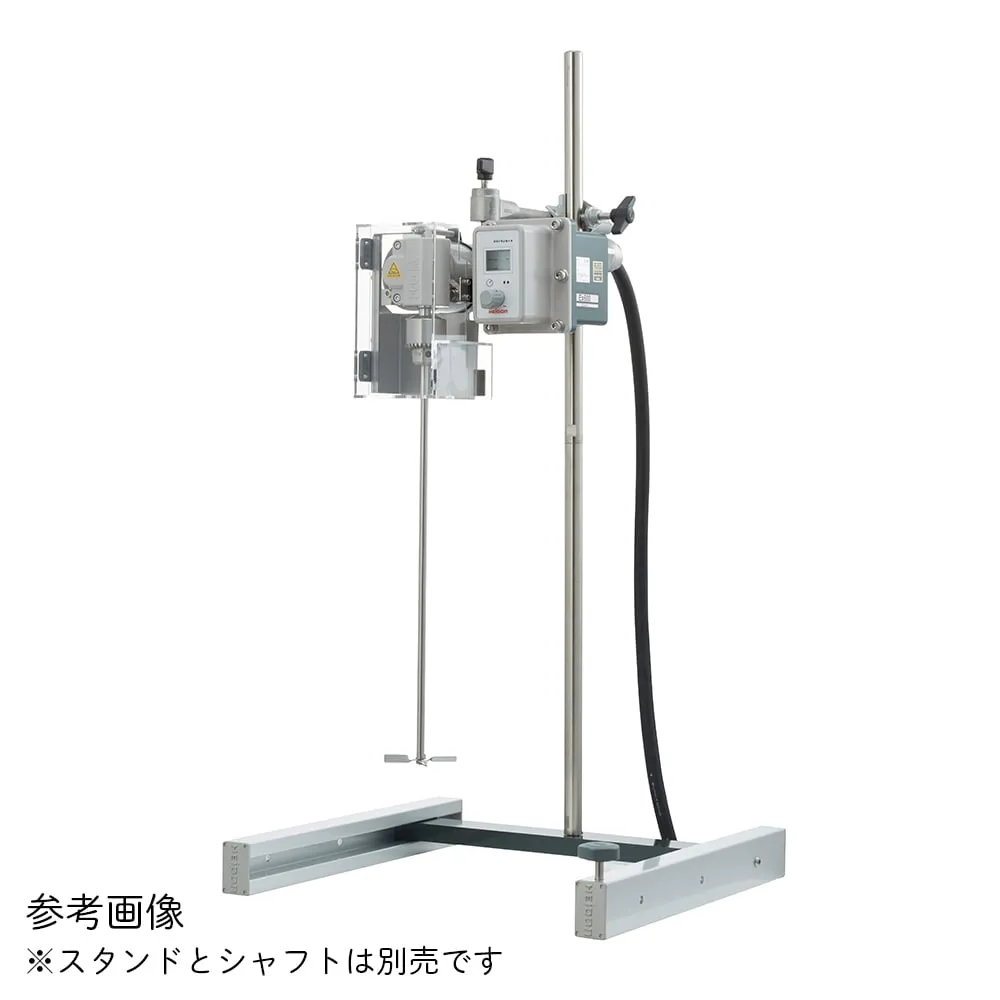

4-5221-01 Pressure and Explosion-Proof Stirrer Three-One Motor 5 ~ 300 rpm Ex300
model:
4-5221-01
category:
laboratoryinstruments
Product Description
Product Model: 4-5221-01 Features Stirring blades and s […]
Contact Us
Product Details
Product Model: 4-5221-01
Features
- Stirring blades and shafts for the abundant three-one motors can be ***d as is.
- It adopts a stainless steel drill chuck that is resistant to organic solvents.
- It has a feedback function to keep the set speed.
Spec
- Speed (rpm): 5 ~ 300
- Rated torque (N/m): 2.0
- Motor: DC Brushless Motor Class B Insulation 130 degrees C 80 W
- Safety devices: Current limiting circuit, thermal protector, safety cover
- Panel Display
- Speed: Digital 4-digit Overload Indicator Torque Indicator (20% on 1 scale)
- Rotation control: Feedback control, forward and reverse switching, forward and reverse timers, stirring stop timers
- Size: 189 x 192 x 200 mm (without arm bars, etc.)
- Weight: 5.1 kg (internal power cord weight: 1.2 kg)
- Power supply: 100 V, 50/60 Hz, shared 200 VA
- Power Cord: 3 Types of Captire Cable 3 m (3 PNCT x 3 Cores), Outer Diameter/16 mm, Terminal/Round Terminal R2 -
- Explosion-Proof Standard: ExdIIBT 4Gb4
- *A grounded rubber plug is included for operation confirmation, but this plug can not be ***d in hazardous areas.
- Clamp holder with safety cover
- *Stand shafts are sold separately.
