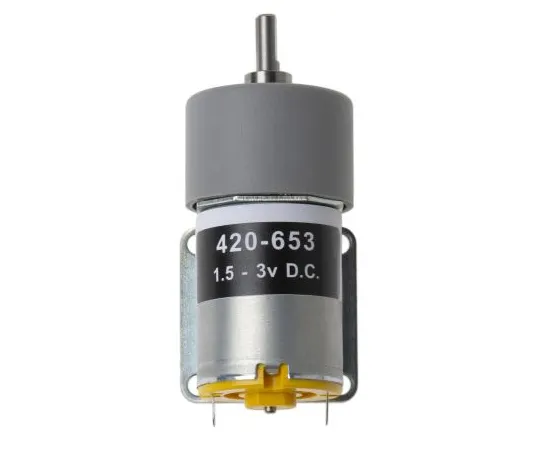

63-4619-25 RS PRO Brushed Geared DC Geared Motor, 1.7 W, 3 V, 12 Ncm, 29 rpm, 4mm Shaft Diameter 420-653
Product Description
Product Model: 63-4619-25Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4619-25
Product Brand: RS PRO
Features
- MODEL MOTOR AND GEAR BOX - SPAR
- This small gearbox is made of steel and brass, and the gears are mounted on a brass, 1 mm thick steel bracket. Three-pole motor with high quality sleeve bearing is adopted. Design and construction suitable for various models and light industrial applications.
- Industrial Use
- Features and Advantages: All gear ratios are available for 4 mm output shaft parts
- RE280, RE280/1, RE280/5 motors available
- Unloaded backlash: up to 2 °
Spec
- Supply Voltage:3 V dc
- DC Motor Type:Brushed Geared
- Power Rating:1.7 W
- Output Speed:35 rpm
- Shaft Diameter:4mm
- Maximum Output Torque:12 Ncm
- Gearhead Type:Spur
- Current Rating:1.06 A
- Length:51mm
- Width:27mm
- Core Construction:Iron Core
- CODE No.:420-653
