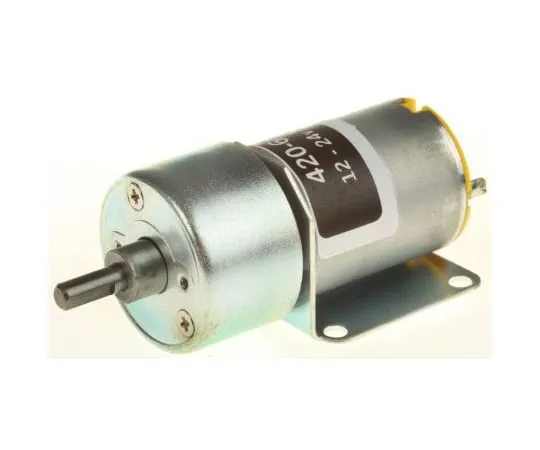

63-4619-24 RS PRO Brushed Geared DC Geared Motor, 1.31 W, 12 V, 15 Ncm, 6 rpm, 4mm Shaft Diameter 420-647
Product Description
Product Model: 63-4619-24Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4619-24
Product Brand: RS PRO
Features
- MODEL MOTOR AND GEAR BOX - SPAR
- This small gearbox is made of steel and brass, and the gears are mounted on a brass, 1 mm thick steel bracket. Three-pole motor with high quality sleeve bearing is adopted. Design and construction suitable for various models and light industrial applications.
- Industrial Use
- Features and Advantages: All gear ratios are available for 4 mm output shaft parts
- RE280, RE280/1, RE280/5 motors available
- Unloaded backlash: up to 2 °
Spec
- Supply Voltage:12 V dc
- DC Motor Type:Brushed Geared
- Power Rating:1.31 W
- Output Speed:8 rpm
- Shaft Diameter:4mm
- Maximum Output Torque:15 Ncm
- Gearhead Type:Spur
- Current Rating:190 mA
- Length:51mm
- Width:27mm
- Core Construction:Iron Core
- CODE No.:420-647
