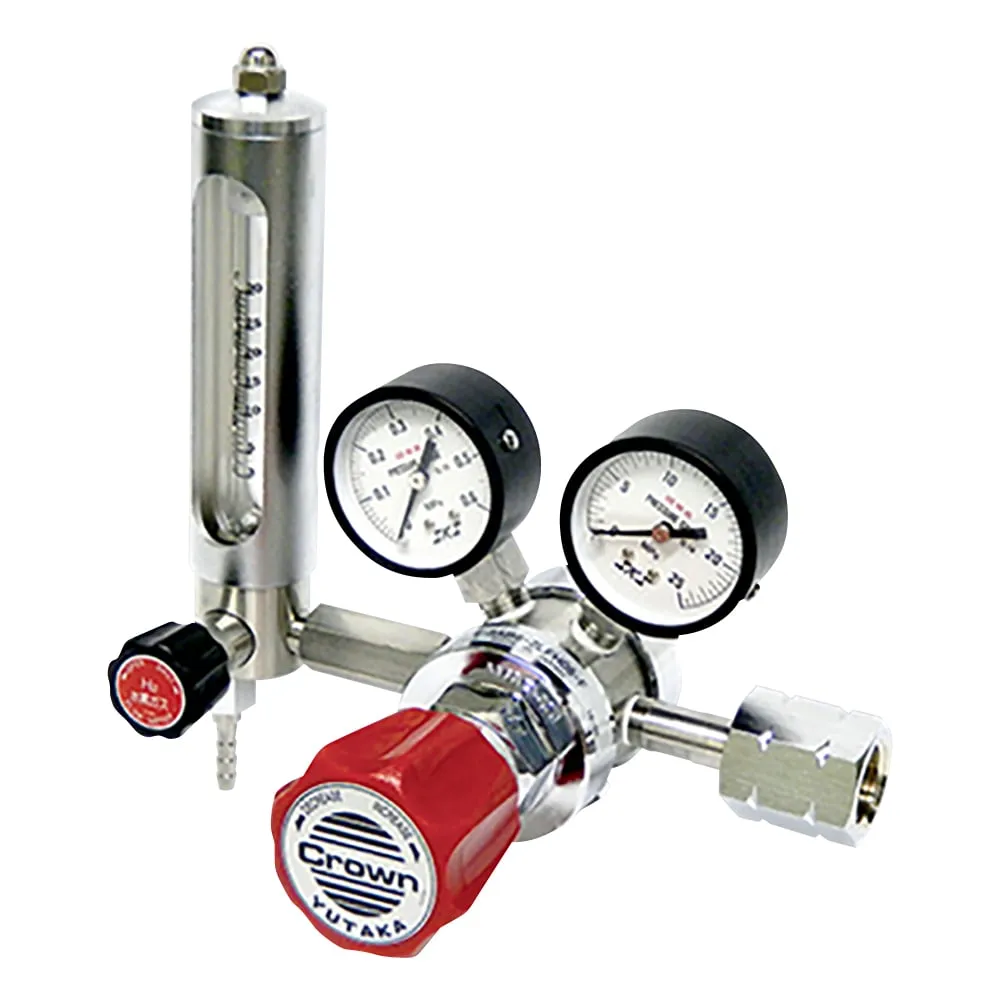

1-4011-07 Pressure Regulator GSNS45AB62LFH06F GSRS45AB62LFH06F
model:
1-4011-07
category:
dissectiontoolsandsupplies
Product Description
Product Model: 1-4011-07 Features Clean cleaning and as […]
Contact Us
Product Details
Product Model: 1-4011-07
Features
- Clean cleaning and assembly type developed for standard and special gas for gas analysis equipment.
- Since it is a two-stage depressurization type, the outlet pressure is stable.
- Continuous and precise flow rate setting and supply is possible.
Spec
- Side pressure meter: Input / 25 MPa Output / 0.6 MPa
- Fittings: Indoor / W 22 Left bag nut, Exit / φ6 mm hose port or M12-P 1.0 male screw
- pressure of ***: Entrance / 14.8 MPa (MAX MAX MAX MAX MAX), Exit / 0.4 MPa (MAX MAX MAX MAX MAX)
- Material: Main / Stainless (SUS316), Valve Sheet / Teflon R or Daifuron, Diaphragm / Stainless Steel (SUS316), Teflon (R) plate
- flow rate: 30 L/min or less
- Weight: 2.4 kg
- Model number: GSN2-4-5 AB6-2 LFH06-F
- Type: Two-stage type with a flow rate meter mounted on the cylinder
- Corresponding gas: H2
- GS Series
Related product recommendations
You may also be interested in the following products
dissectiontoolsandsupplies

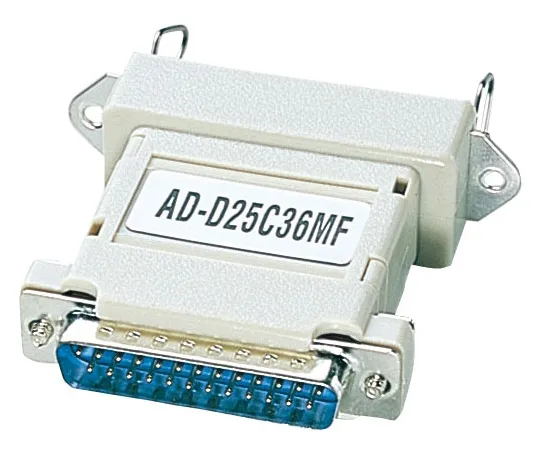

64-0848-32 ［Discontinued］Printer Adapter AD-D25C36MF
