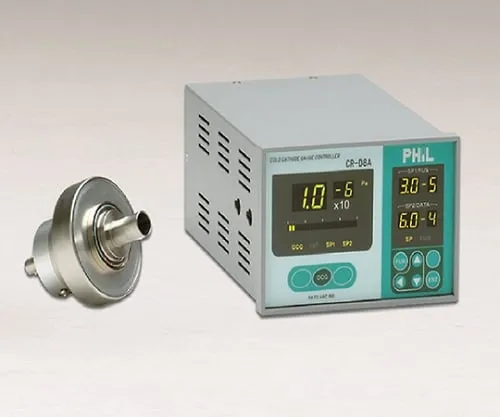

61-3612-91 Cold Cathode Ion Gauge CR-D8A
Product Description
Product Model: 61-3612-91Product Brand: SATO VAC INC. F […]
Contact Us
Product Details
Product Model: 61-3612-91
Product Brand: SATO VAC INC.
Features
- It is standard equipped with a discharge monitoring function that realizes reliable discharge in the high vacuum region without filament disconnection.
- Easy to handle with key operation, digital and bar graph displays the pressure state, and comes with a worry-free function that allows you to check the operating state by various messages such as when discharge stops.
Spec
- Measurement range: 5.0 x 10^-1 - 1 x 10^-6
- Pressure unit: Pa
- Control output, recorder output, display cycle, measuring method, probe method: Probe method C-4A reverse magnetron type cold cathode gage, recorder output full-range DC5V/10V switching contact output 2 points 110V AC0.5A (resistance load)
- Power voltage: AC100V - 240V ±10% 50Hz/60Hz 30VA
- Dimensions: W144 x D220 x H96mm
- Mass (kg): 1.8
- Probe: C-4A type φ15 gage port mounting
