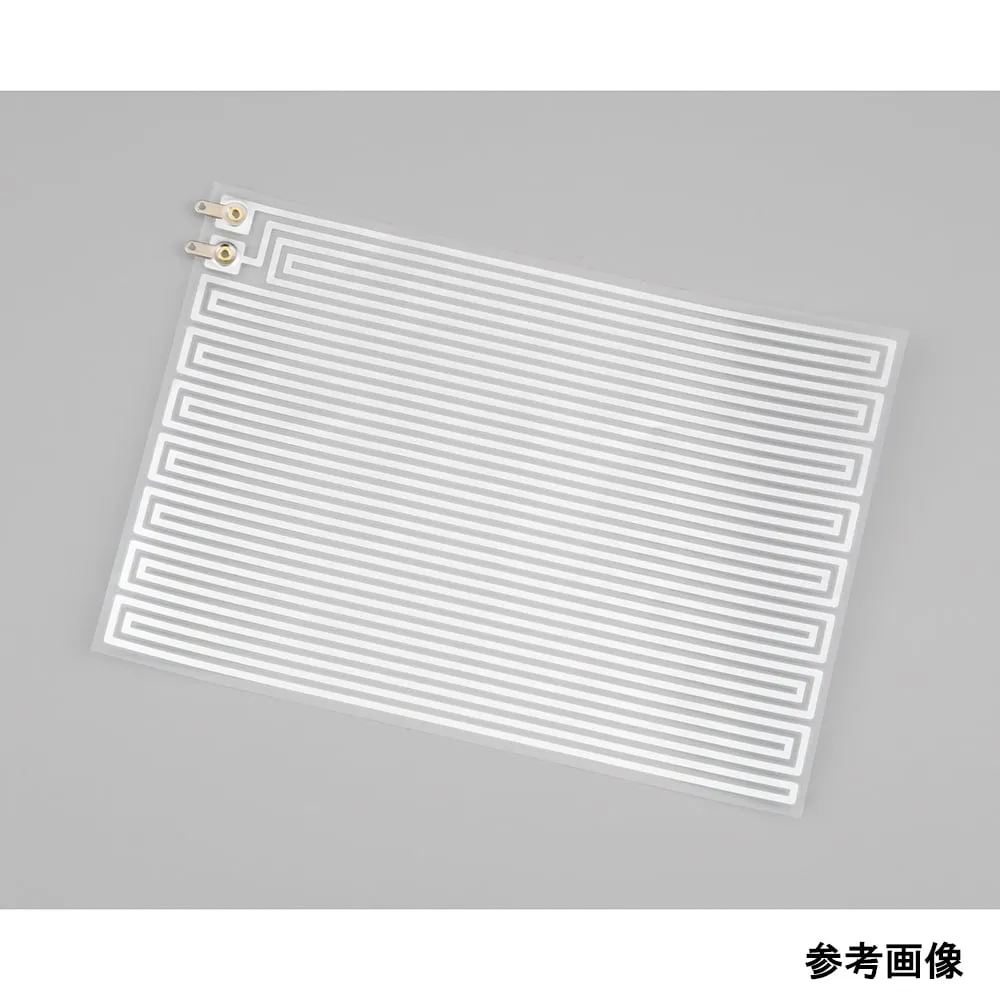

4-4636-01 Aluminum foil film heater, no adhesion (PET/OC) 3.3 ohm AL-A5-30-3.3D
model:
4-4636-01
category:
laboratoryinstruments
Product Description
Product Model: 4-4636-01 Spec Number of pieces: 1 Speci […]
Contact Us
Product Details
Product Model: 4-4636-01
Spec
- Number of pieces: 1
- Specifications: No adhesion (PET/OC)
- Heat-resistant temperature: no adhesion, 110 degrees C
- Composition: PET/AL foil/overcoat
- Resistance crossing: +/- 10%
- Resistance: 3.3 ohms
- External dimensions (mm): 143 x 205
- Heat generating surface dimensions (mm): 136 x 198
- Recomm***ed voltage: 12 V or less regardless of AC/DC
- *When applying more voltage than recomm***ed, be careful not to exceed the heatproof temperature of the heater.
