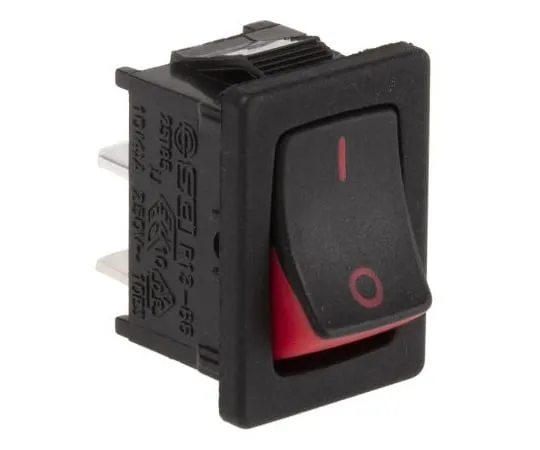

63-4619-02 RS PRO Single Pole Single Throw (SPST), On-None-Off Rocker Switch Panel Mount 419-794
Product Description
Product Model: 63-4619-02Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4619-02
Product Brand: RS PRO
Features
- CSA (file number UL45128), VDE (file number 11037-4401), UL, ENEC, CQC
- RS Miniature rocker switch
- Miniature SPST rocker switch with a wide range of markings and color options Panel cutout 19.2 x 13 mm 4.8 mm Blade type with terminals (except solder tagged part number < 419-726') 419-726 /) Easy-to-install panel snap-ins UL 94 V-2 compliant nylon housing with silver plated brass terminals
Spec
- Contact Configuration:Single Pole Single Throw (SPST)
- Switch Operation:On-None-Off
- Panel Cut Out Width:13mm
- Panel Cut Out Height:19.2mm
- Contact Current Rating:10 A
- Illuminated:No
- Actuator Colour:Black/Red
- Mounting Type:Panel Mount
- Terminal Type:Quick Connect
- Actuator Shape:Rectangular
- Case Material:Nylon
- CODE No.:419-794
