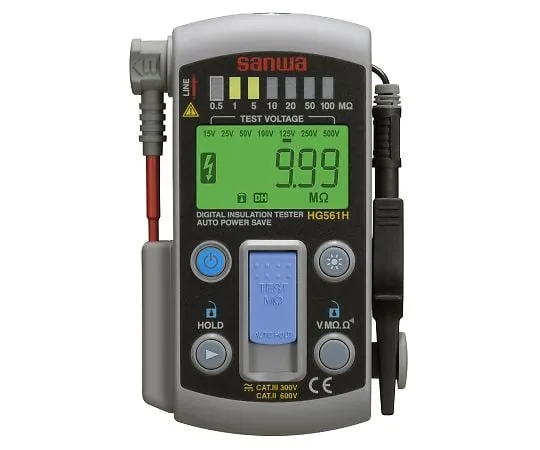

61-3516-02 Digital Multimeter Mega Ohm Tester DG36a/C HG561H
Product Description
Product Model: 61-3516-02Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3516-02
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- 7 Range type small size design
Spec
- MΩ (rated voltage): 21MΩ (15V/25V/50V)
- MΩ (rated voltage): 110MΩ (100V/125V/250V/500V)
- ACV/DCV: 600V (AC/DC automatic detection)
- Resistance: 999.9/99.99/999.9Ω
- Continuity: Buzzer sound at 30Ω or less
- Rated current 1.0 - 1.2mA
- Power supply: LR03 (AAA alkaline) x 4
- Dimensions/mass: H139 x W91 x D29mm/approx 230g
- Accessories: Probe (red), Clip lead (black 1.8m), Carrying case
