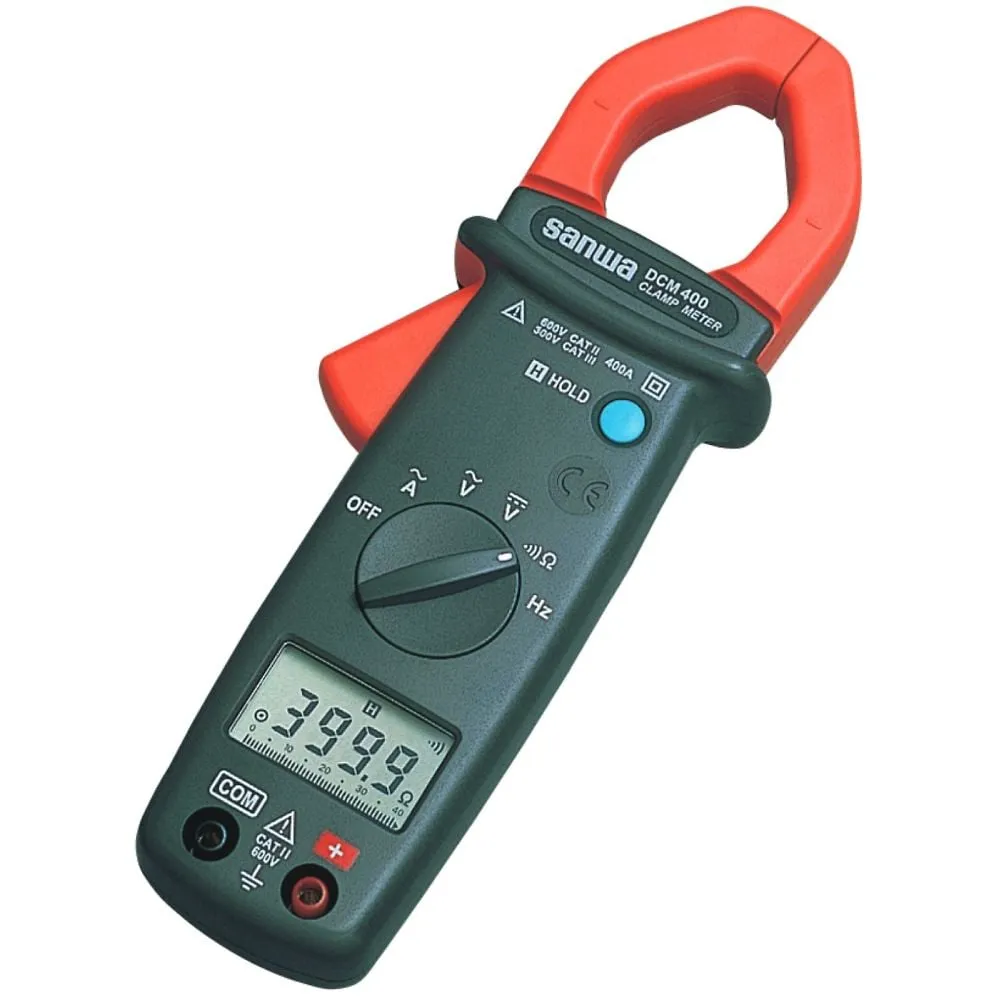

61-3515-87 Clamp Meter AC DCM400
Product Description
Product Model: 61-3515-87Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3515-87
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- Voltage and resistance measurement at AC current-only test lead
Spec
- ACA: 40/400A
- ACV: 400/600V
- DCV: 400/600V
- Resistance: 400Ω
- Frequency (current): 20 - 4k/10kHz
- Frequency (voltage): 4k/40k/400k/4M/10MHz
- Continuity: Buzzer sound at approx 40Ω or less, open voltage approx 1.5V
- Clamp conductor diameter: φ25mm
- Power supply: R03 (AAA type) x 2
- Dimensions/mass: H193 x W50 x D28mm/approx 230g
- Accessories: Test lead, Carrying case
