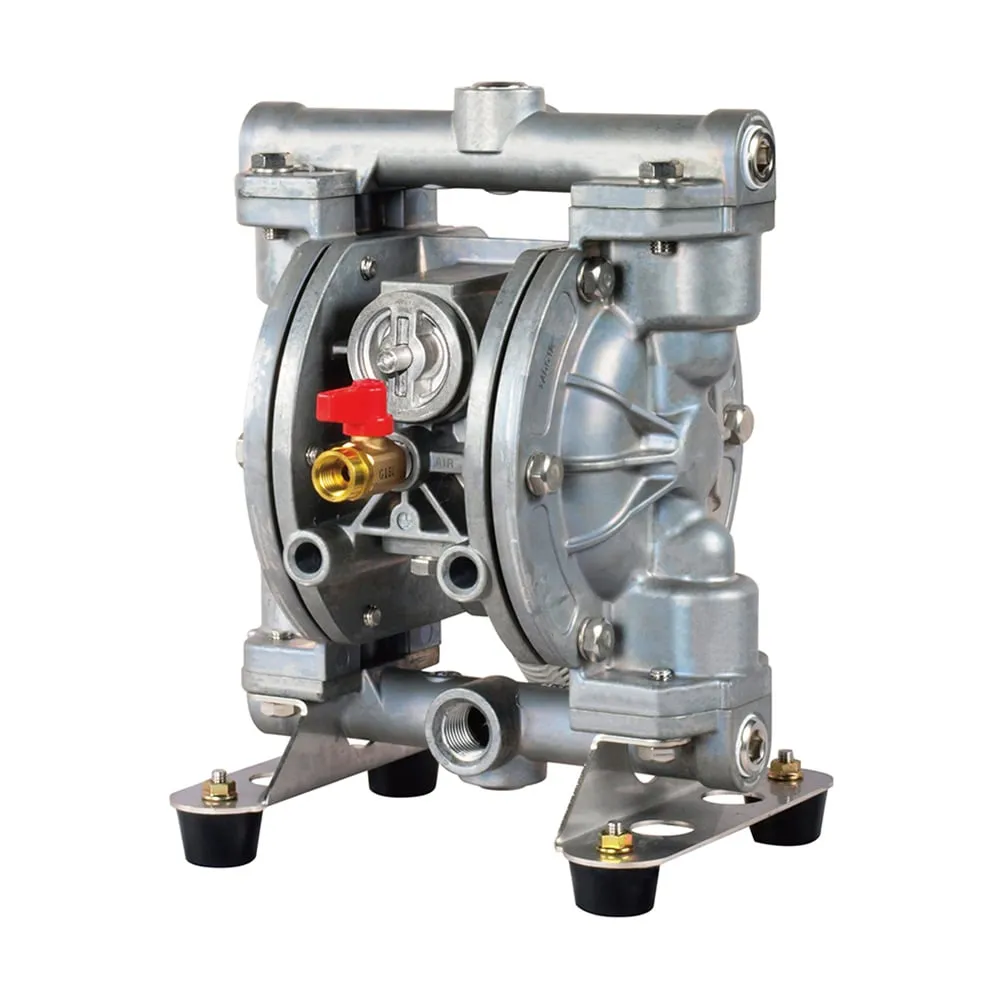

4-3963-01 Diaphragm Pump (Air Driven) Aluminum/NBR Approx. 60L/min G15AN00
model:
4-3963-01
category:
laboratoryinstruments
Product Description
Product Model: 4-3963-01 Features The metal type can be […]
Contact Us
Product Details
Product Model: 4-3963-01
Features
- The metal type can be connected in 4 directions (The resin type has three directions of suction and two directions of discharge.).
- A new switching mechanism has been adopted for the air switching section.
- This is a completely self-priming air-driven pump that does not need to be primed.
Spec
- Wetted Part Material: Aluminum/NBR
- Maximum Discharge (L/min): About 60
- Maximum discharge pressure (MPa): 0.7
- Number of pieces: 1
- Service air pressure: 0.2 ~ 0.7 MPa
- Connection diameter: Rc 1/2 (inlet/outlet)
- Size: 189 x 194 x 265 mm
- Weight: 5.4 kg
- Wetted part materials: body casing/aluminum alloy (ACD 12), diaphragm ball/NBR, O-ring/NBR, valve seat/aluminum (A 5056)
