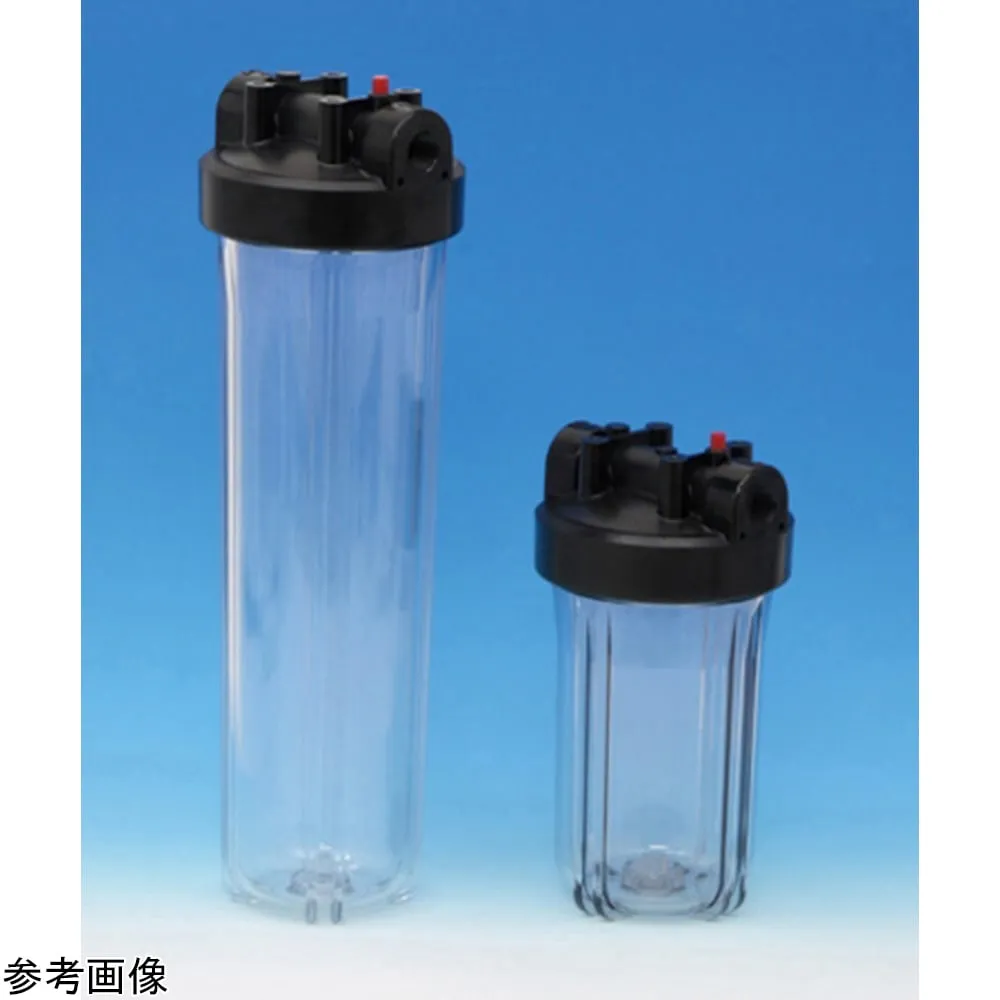

4-3946-01 Filter Housing Phi 185 x 356 mm BSP 3/4 BHPS-250SP-34P
model:
4-3946-01
category:
laboratoryinstruments
Product Description
Product Model: 4-3946-01 Features You can check the sta […]
Contact Us
Product Details
Product Model: 4-3946-01
Features
- You can check the status of the internal filter.
- Wetted part material is PP, PC, SUS304, NBR.
Spec
- Size (mm): phi 185 x 356
- Compatible cartridge length (mm): 250
- Connection diameter: BSP 3/4
- Number of pieces: 1
- Material: Head/Reinforced PP, Housing/Polycarbonate, O-Ring/NBR (Nitrile Rubber), Pressure Relief Part/PP/SUS 304
- Maximum working pressure: 0.49 MPa
- Maximum operating temperature: 45 degrees C
- *Avoid direct sunlight, water hammer, freezing and pulsation.
- *Check corrosion resistance in advance when using liquids other than water.
