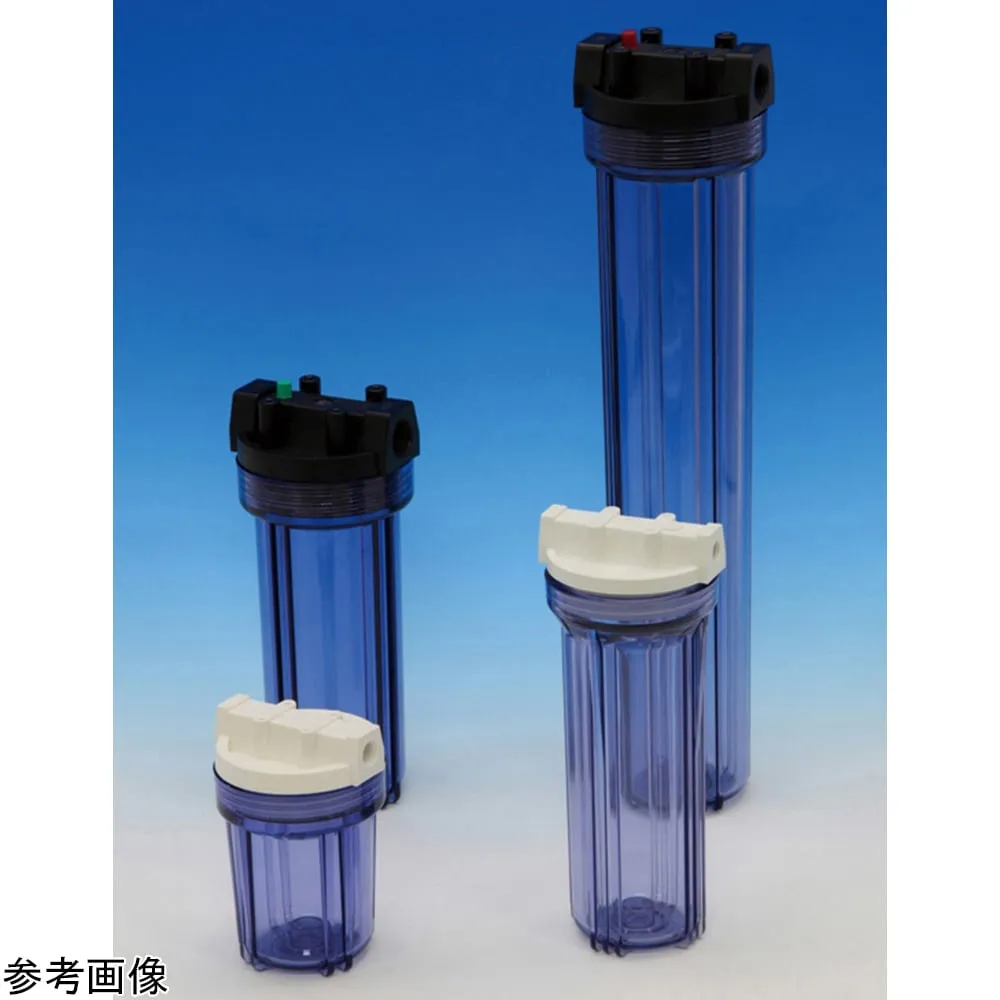

4-3944-01 Filter Housing Phi 121 x 301 mm NPT 1/4 HPKS-250S-14
model:
4-3944-01
category:
laboratoryinstruments
Product Description
Product Model: 4-3944-01 Features Filter housing made o […]
Contact Us
Product Details
Product Model: 4-3944-01
Features
- Filter housing made of resin.
- Can be ***d in liquids where stainless materials cannot be ***d.
- It is a transparent type and you can check the status of the filter.
Spec
- Size (mm): phi 121 x 301
- Compatible cartridge length (mm): 250
- Connection diameter: NPT 1/4
- Number of pieces: 1
- Materials: Head/Reinforced PP, Housing/AS Resin, O-Ring/NBR (Nitrile Rubber), Pressure Relief/PP
- Maximum working pressure: 0.42 MPa
- Maximum operating temperature: 45 degrees C
- *Avoid direct sunlight, water hammer, freezing and pulsation.
- *Check corrosion resistance in advance when using liquids other than water.
