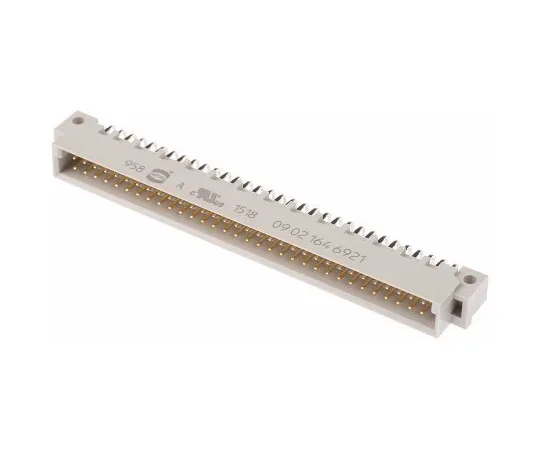

63-4615-93 DIN 41612 Connector Male 64 Pole 2 Row 2.54 mm Pitch 09021646921
Product Description
Product Model: 63-4615-93Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-4615-93
Product Brand: HARTING
Features
- Harting DIN41612 Type B Backplane Signal Connector
- The Harting DIN41612 Type B backplane signal connector is designed for substrate applications up to 2 A per contact.
- The DIN 41612 PCB signal connector with excellent cyclic life, abrasion resistance and high durability provides an economical solution for many electronic connector design applications.
- Part numbers < 757-7989') 757-7989/and < 757-7964') 757-7964/have been approved for railway applications under Railway Classification NFF16-101, Smoke Index F1 and Flame Retardant Grade I2.
- Operating Temperature Range: -55→+125°C Up to 2 A (per contact) Test Voltage: 1 kV Contact Resistance: 20 MΩ or Less Thermoplastic Resin - Copper Alloy with Glass Fiber Contact Termination Method - Solder
Spec
- Quantity: 1 piece
- Number of contacts: 64
- G***er: Male
- Number of lines: 2
- Body orientation: right angle
- Terminal Method: Solder
- Loading column: a/b
- Type: B
- pitch: 2.54 mm
- Mounting type: through hole
- Class Rating: C2
- Rated current: 2A
- RoHS compliance status: Compliance
- Securities Code: 406 -206
