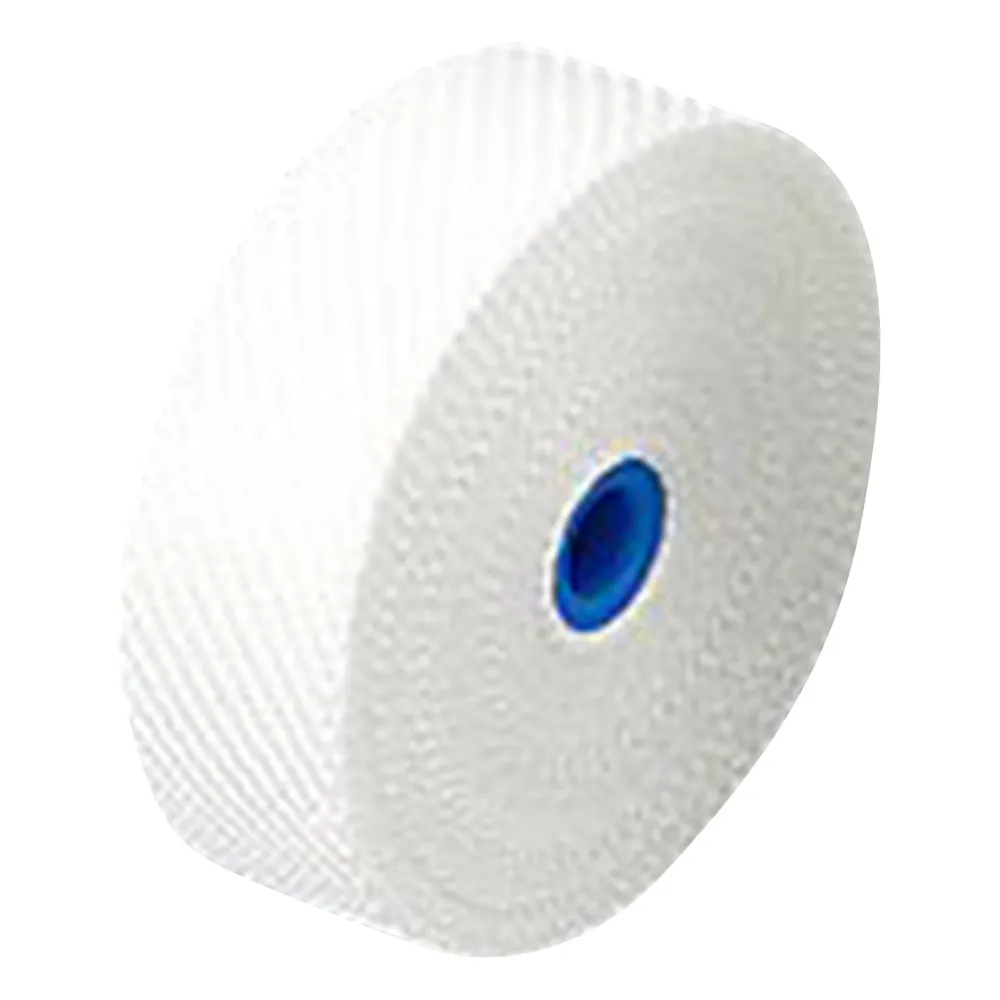

1-2770-01 Alumina Tape AT-25S
model:
1-2770-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 1-2770-01 Features Has excellent heat re […]
Contact Us
Product Details
Product Model: 1-2770-01
Features
- Has excellent heat resistance and maintains high strength and flexibility even after heating.
- Excellent workability, corrosion resistance, electrical insulation, elasticity, and low moisture absorption.
- There is no adhesive.
Spec
- Material: Alumina silica woven fabric
- Chemical composition: Al2O3/70%, SiO2/30%
- Density: 2.9g/mL
- Tensile strength: 200kgf/mm2
- Tensile modulus of elasticity: 17000kgf/mm2
- Maximum operating temperature: 1200℃
- Model number: AT-25S
- Width x length: 25mm x 10m
- Thickness (mm): 0.32
- RoHS3 (EU)2015/863 Certificates can be issued
