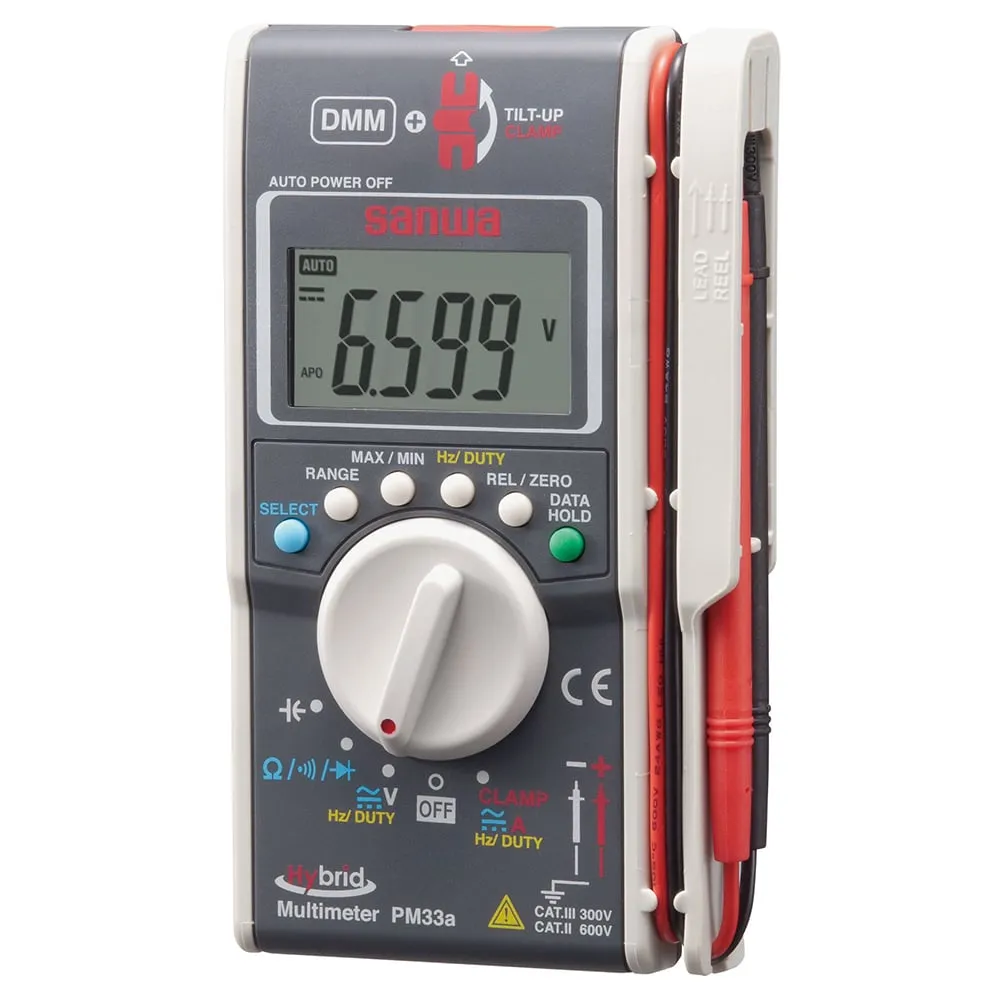

61-3378-47 Digital Multimeter Hybrid Multimeter Pm33A PM33a
Product Description
Product Model: 61-3378-47Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3378-47
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- Use of U-type clamp sensor
Spec
- DCV: 660m/6.6/66/600V
- ACV: 660m/6.6/66/600V
- DCA: 100A (CT clamp)
- ACA: 100A (CT clamp)
- Resistance: 660/6.6k/66k/660k/6.6M/66M
- Condenser capacity: 6.6n/66n/660n/6.6μ/66μ/660μ/6.6m/66mF
- Frequency: 660/6.6k/66kHz
- Duty ratio: 20 - 80%
- Continuity: Buzzer sound at less than approx 30Ω, open voltage approx 1.2V
- Diode test: Open voltage approximately 3V
- Clamp diameter: φ10 mm
- Power supply: LR03 (AAA alkaline) x 2
- Dimensions/mass: H130 x W75 x D19.9mm/approx 160g
- Test lead: Both red and black ones are directly connected to the body
