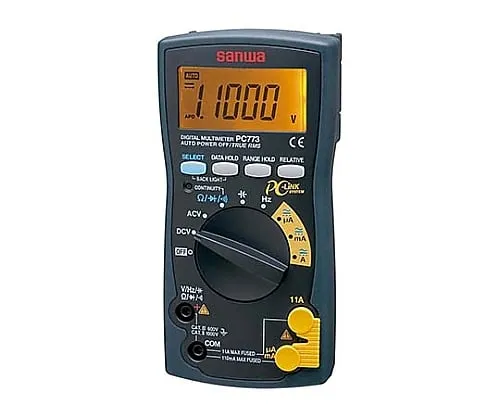

61-3516-44 Digital Multimeter Data Processing (PC Connection) PC773
Product Description
Product Model: 61-3516-44Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3516-44
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- PC connection available (optional)
Spec
- DCV: 110m/1.1/11/110/1000V
- ACV: 110m/1.1/11/110/1000V
- DCA: 110μ/1100μ/11m/110m/11A
- ACA: 110μ/1100μ/11m/110m/11A
- Resistance: 110/1.1k/11k/110k/1.1M/11M/110MΩ
- Condenser capacity: 11n/110n/1.1μ/11μ/110μ/1.1m/11m/110mF
- Frequency: 110Hz/1100Hz/11kHz/110kHz/1.1MHz
- Continuity: Buzzer sound and lamp lighting at 30Ω or less
- Diode test: Open voltage, almost battery voltage
- Built-in f***: 315mA/1000V, Breaking capacity 30kA φ6.35 x 32mm
- Built-in f***: 12A/1000V, Breaking capacity 30kA φ10 x 38mm
- Power supply: R6P (AA dry battery) x 2
- Dimensions/mass: H166 x W82 x D44mm/approx 360g
- Accessories: Test lead
