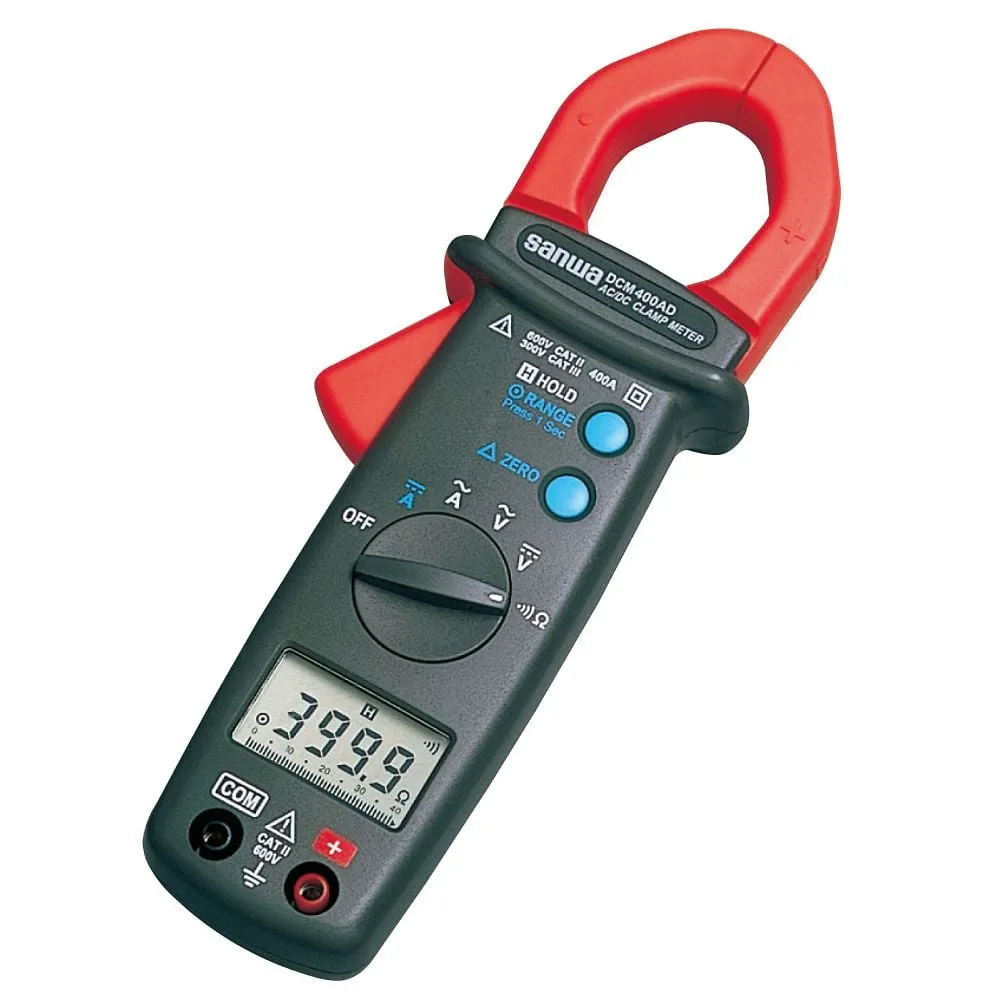

61-3378-41 Clamp Meter for Both DC/AC DCM400AD
Product Description
Product Model: 61-3378-41Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3378-41
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- Voltage and resistance can be measured at AC/DC test leads
Spec
- ACA: 40/400A
- DCA: 40/400A
- ACV: 400/600V
- DCV: 400/600V
- Resistance: 400Ω
- Continuity: Buzzer sound at approx 40Ω or less, open voltage approx 1.5V
- Clamp conductor diameter: φ25mm
- Power supply: LR03 (AAA alkaline) x 2
- Dimensions/mass: H193 x W50 x D28mm/approx 230g
- Accessories: Test lead, Carrying case
