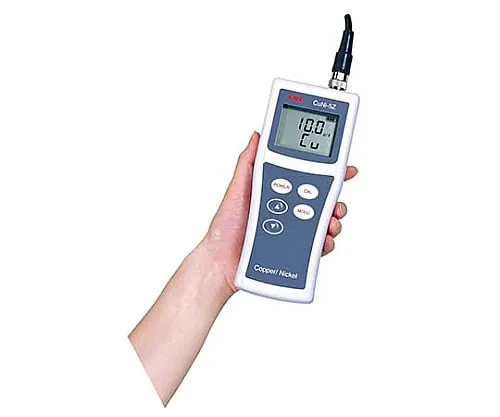

61-3376-24 Copper And Nickel Concentration Meter Cuni-5Z CuNi-5Z
Product Description
Product Model: 61-3376-24Product Brand: Kasahara Chemic […]
Contact Us
Product Details
Product Model: 61-3376-24
Product Brand: Kasahara Chemical Instruments Corp.
Features
- Copper/nickel concentration is measured by switching the measurement mode.
- The Cu/CuSO4 mode can be selected for copper measurement.
- The automatic temperature compensation sensor measures the water temperature of the plating solution.
- Wetted part has excellent chemical resistance.
- Calibration and measurement can be performed in the ***r mode, and calibration curves, numerical values, and measurement units can be set.
Spec
- Measuring method: Absorption photometry
- Measurement range: Copper/0 - 80.0g/l, Copper sulfate/0.0 - 300g/l, Nickel/0.0 - 199.9g/l, Absorbance/0.000 - 1.999Abs, User mode/0 - 1999, Temperature/0.0 - 50.0℃
- Accuracy: Within ±2% FS
- Resolution: Copper, nickel/0.1g/l, Copper sulfate/0.1g/l (0 - 200g/l), 1g/l (200 - 300g/l), Absorbance/0.001Abs, User mode/1 (no units), Temperature/0.1
- Reproducibility: Within ±1% (FS)
- Measurement temperature: 0 - 50℃
- Span calibration: By copper or nickel standard solution
- With auto power OFF function
- Liquid junction material PVC (vinyl chloride resin), PFA (fluororesin), Viton (R)
- Power supply: AAA dry cell x 3 (included)
- Cable length: 2m
- Size: Body/75 x 38 x 180mm, Detector/φ40 x 214mm
- Weight: Body/about 300g, Detector/about 500g (excluding cables)
- Accessories: Electrode, vinyl cover, strap, carrying box
Related product recommendations
You may also be interested in the following products
toner
toner
62-0853-99 Gas Detector Tube ETBE (Ethyl-Tert-Butyl Ether) 248U
model: 62-0853-99
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
![62-9146-18 [For EA701SA-10， -20] K Thermocouple Sensor EA701SA-205](https://www.jgauge.com/wp-content/uploads/2025/05/f215ccb07dbadcca7c9e97efcdc64b35.webp)
toner

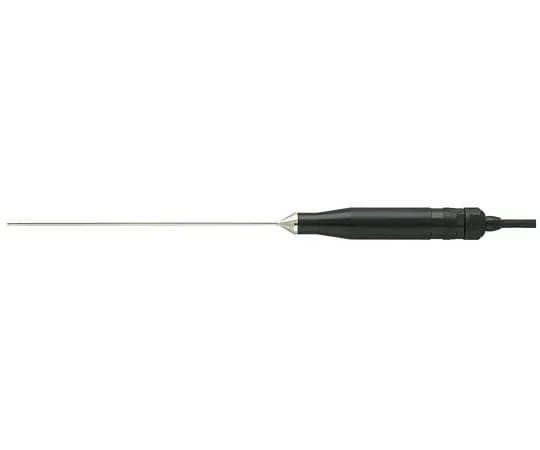

62-9146-18 [For EA701SA-10， -20] K Thermocouple Sensor EA701SA-205
