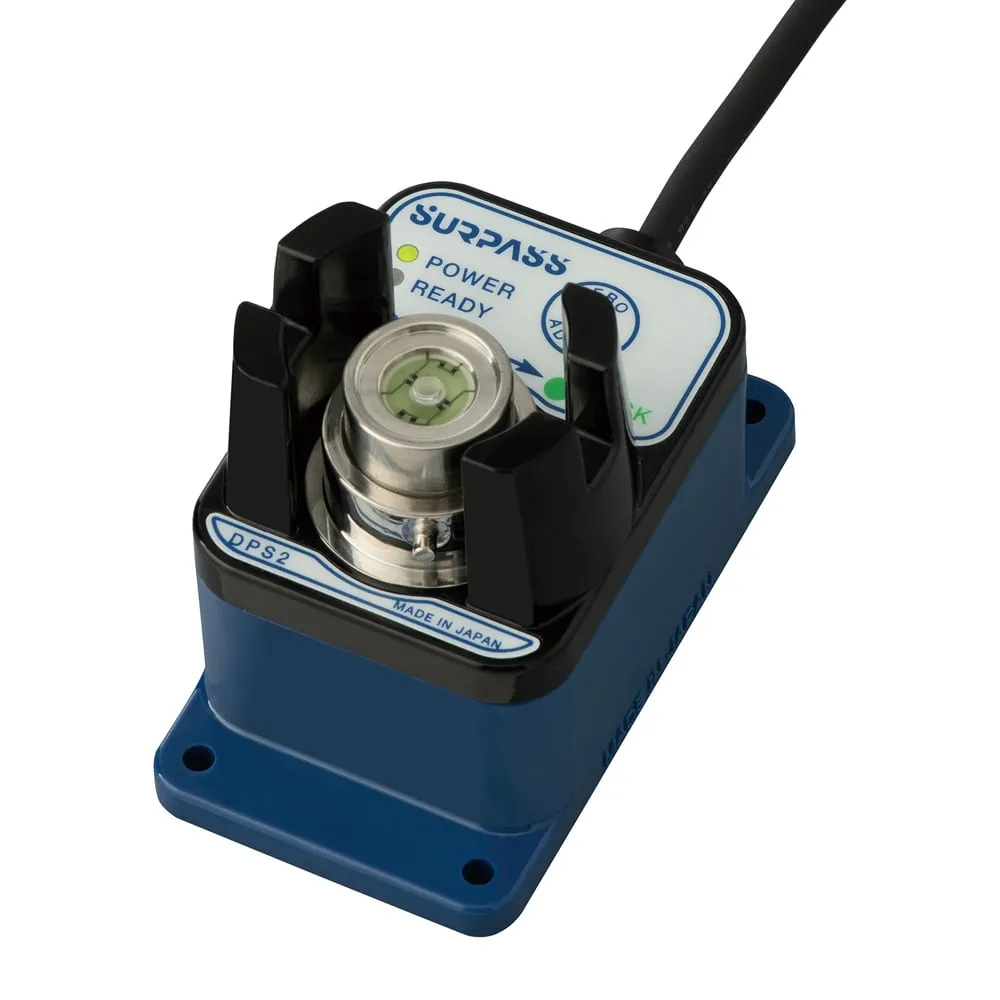

4-2578-11 Disposable Pressure Sensor Amplifier Part DPS2-AP-P3
Product Description
Product Model: 4-2578-11Product Brand: Surpass Industry […]
Contact Us
Product Details
Product Model: 4-2578-11
Product Brand: Surpass Industry
Features
- The diaphragm section through which fluid passes is disposable.
- The joint adopts a lure lock, which is standard in physical and chemical equipment and medical equipment, for easy piping and connection.
- The amplifier and diaphragm sections can be installed easily by turning a fixing nut.
- When ***d in conjunction with an optional communication adapter, various functions such as power supply to the unit and pressure monitor are supported.
- * Use together with the diaphragm part (model: DPS-P) of the DPS series. (Pressure can not be measured by this product alone.)
- * DPS-P can also be ***d as a disposable part of the FW series of tube pumps.
Spec
- Specifications: amplifier section
- Rated pressure: 0 ~ 300 kPa
- Fluid and ambient temperature range: 20 ~ 30 degrees C
- Wetted Part Material: Polycarbonate
- Analog output: 4 ~ 20 mA DC
- Power supply voltage: 12 ~ 24 +/- 10% DC
- Current consumption: MAX 70 mA (12 V), MAX 50 mA (24 V)
- Cable length: 2 m
- Connection shape: Luer lock
- Accuracy: +/- 5% F.S. (at 25 degrees C)
- Withstand pressure: 1.2 MPa
- *The amplifier section does not come with a diaphragm section (disposable sensor section).
- RoHS3 (EU)2015/863 Certificates can be issued
