automaticdiluter

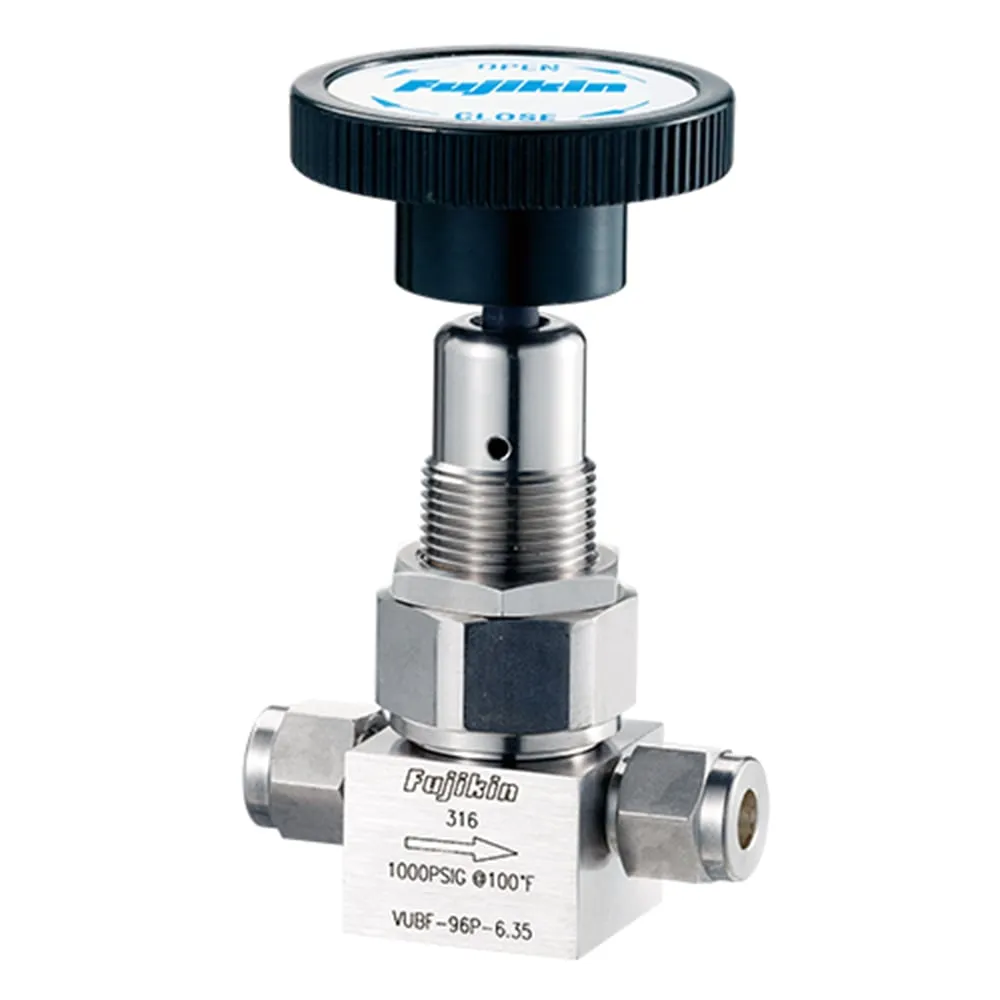

1-1766-12 bellows valve VUBF-96P-6.35-V
model:
1-1766-12
category:
automaticdiluter
Product Description
Product Model: 1-1766-12 Features Has excellent airtigh […]
Contact Us
Product Details
Product Model: 1-1766-12
Features
- Has excellent airtightness.
- Can be ***d for vacuum lines and flammable and toxic gases.
Spec
- Type: Metal Seal
- Material: Body/Stainless Steel (ASTM A479 316), Disk/Stainless Steel (ASTM A479 316)/Cobalt Base Alloy, Stem (Non-Wetted Part)/ASTM A582 416 or ASTM A582 410 L, Bellows/ASTM A240 321 or AMS5510 TYPE321, Bonnet/ASTM A479 316, Gasket/ASTM A580 316, Handle/Phenol Resin + ZDC2
- Maximum working pressure: 6.89 MPa
- Operating Temperature Range: -28 to +315°C
- Connecting Tube Diameter: 1/4 inch
- Orifice Diameter: φ4.1 mm
