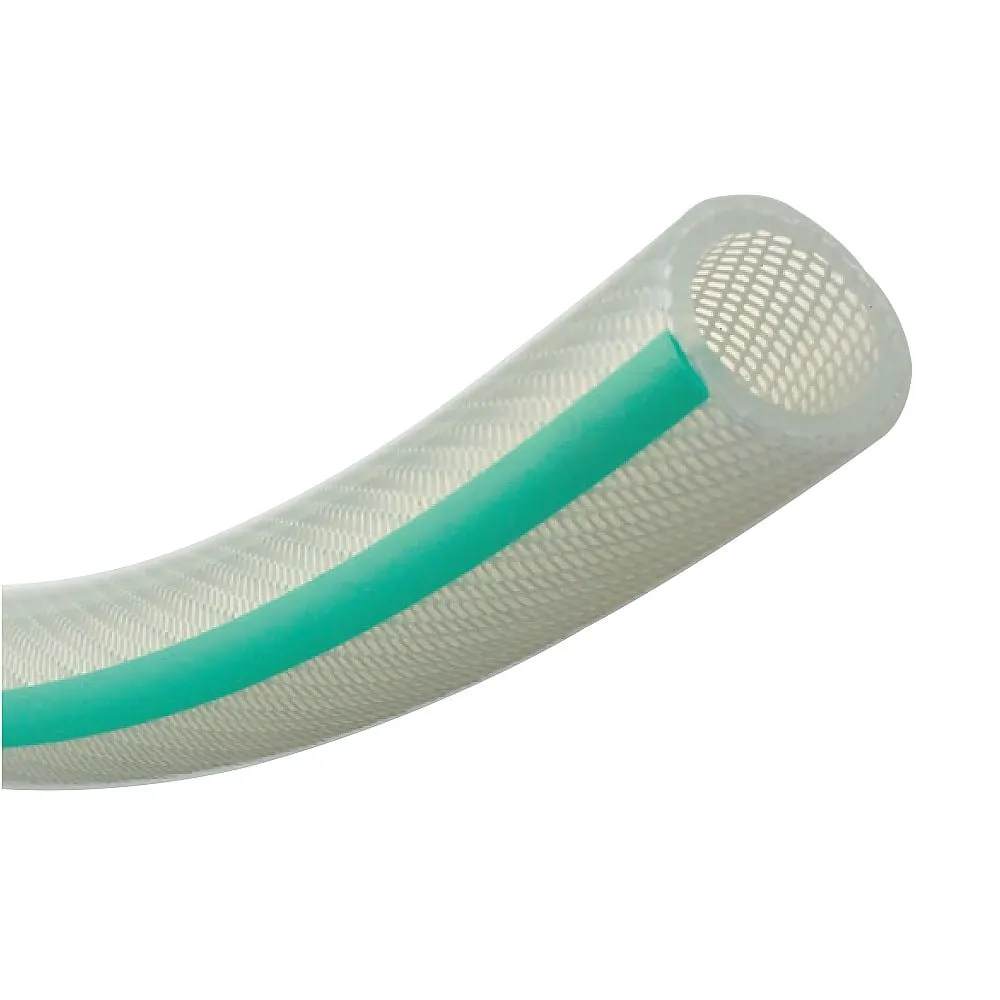

1-1721-03-01 Heat Resistant/Food Pressure Resistant Hose TOYOSILICONE Hose Inner Diameter 7.9 mm x Outer Diameter 14.3 mm Length 1 m TSI-8-1
Product Description
Product Model: 1-1721-03-01Product Brand: TOYOX CO., LT […]
Contact Us
Product Details
Product Model: 1-1721-03-01
Product Brand: TOYOX CO., LTD.
Features
- "Heat and cold resistance": Heat-resistant and pressure-resistant silicone rubber blade hose for pressure feeding. Heat-resistant hose that can be ***d in a wide range of temperature conditions from -30°C to 150°C.
- "Trouble prevention": High pressure resistance and safety with thread slip-off prevention structure.
- "Safe and secure": Can be ***d as a safe and secure heat resistant hose by taking advantage of its characteristics such as low elution, insulation, and low odor.
- "Flexibility": Compared to rubber hoses and PVC hoses, it is flexible and easy to perform piping, etc.
- Compliant with Food Sanitation Law, FDA (US Food and Drug Administration), USP (US Pharmacopeia) ClassVI, RoHS2 revised regulations for safety and peace of mind. Can be safely ***d as a food hose.
Spec
- Inner Diameter x Outer Diameter (mm): 7.9 x 14.3
- Pressure (MPa): 0~1.0
- Operating temperature range: -30~150°C
- Length: 1 m
- Material: Body/Silicone Rubber, Reinforcement/Polyester Thread
- Minimum b*** radius: 90 mm
- RoHS3 (EU)2015/863 Certificates can be issued
