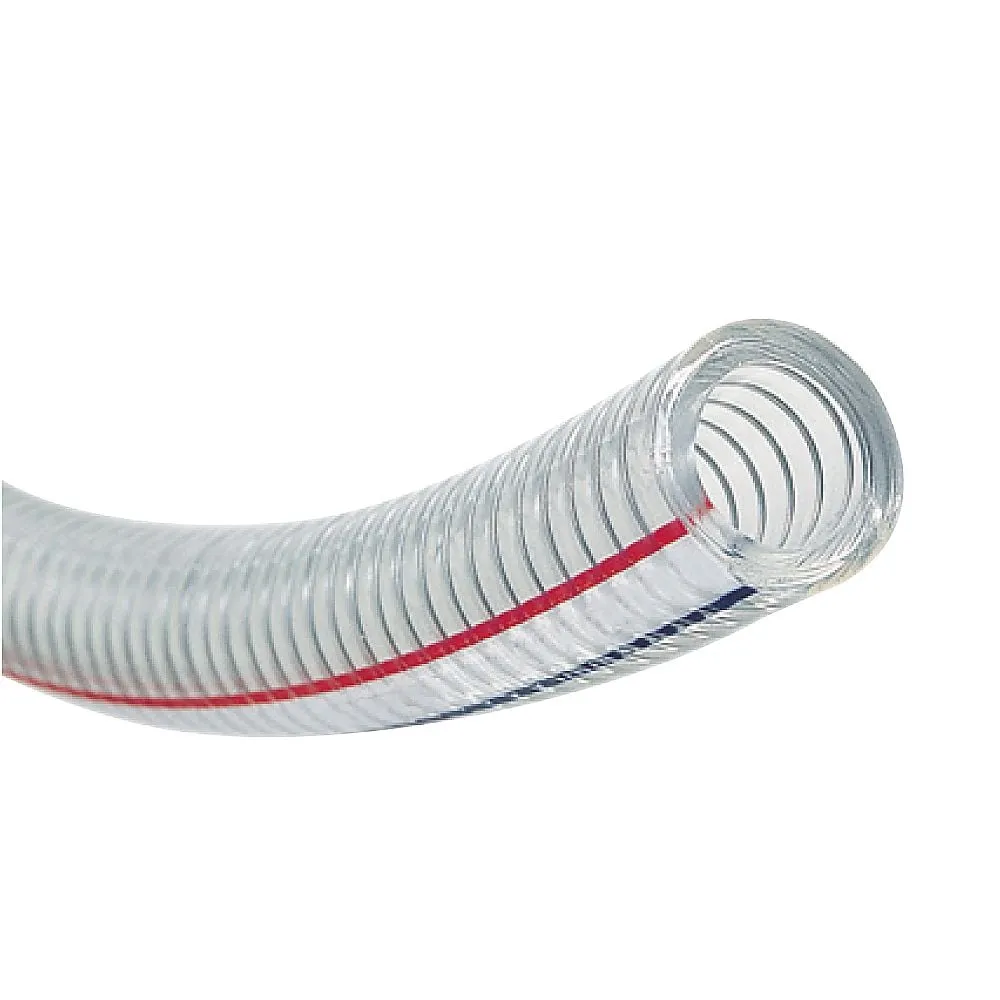

1-1720-01-01 Pressure Hose for water, oil, chemicals, and air (for plant equipment and mechanical piping) TOYOSPRING Hose Inner diameter 6.0 mm x Outer diameter 11.0 mm Length 1 m TS-6-1
Product Description
Product Model: 1-1720-01-01Product Brand: TOYOX CO., LT […]
Contact Us
Product Details
Product Model: 1-1720-01-01
Product Brand: TOYOX CO., LTD.
Features
- "Main applications": Plant piping, mechanical piping suction and pressure feeding
- "Multipurpose resin hose": Pressure-resistant hose that can be ***d for pumping and suction (vacuum) of various fluids such as water, oil, chemicals and air.
- "Prevention of breakage and crushing": Reinforced structure with hard steel wire coil, resistant to breakage and crushing, and stable fluid supply
- "Long life": The inside and outside surfaces of the hose have excellent oil resistance and do not harden and have a long life.
- "Plenty of Sizes": Pressure-Resistant Hose for Suction and Pressure Feeding with Plenty of Size Variations (Inner Diameter 6~100 mm)
- Transparency: Transparency allows you to see the fluid inside.
- Compliant with RoHS2 (as of October 2021)
Spec
- Inner Diameter x Outer Diameter (mm): 6 x 11 Pressure (MPa): -0.1~0.8
- Operating temperature range: -5~60°C
- Length: 1 m
- Material: Body/Soft PVC, Reinforcement/Hard Steel Wire
- Minimum b*** radius: 25 mm
- RoHS3 (EU)2015/863 Certificates can be issued
