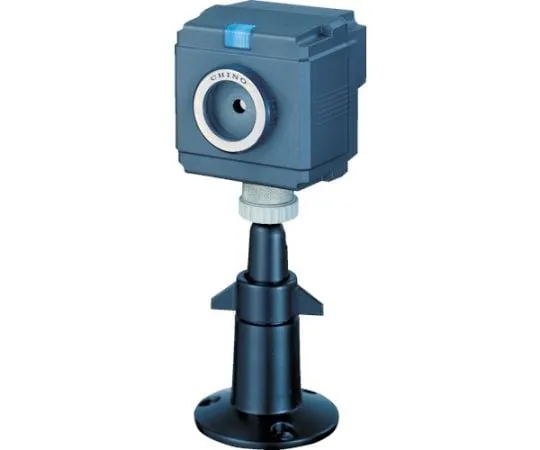

61-1871-44 CHINO Small Thermal Image Sensor TP-L0260EN
Product Description
Product Model: 61-1871-44Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 61-1871-44
Product Brand: CHINO CORPORATION
Features
- Uses approximately 2000 pixels of FPA elements for an affordable price.
- Small, lightweight design.
- In addition to thermal image monitoring using a PC, the sensor body is equipped with an alarm contact output.
- One image is stored in the sensor body when the alarm is output.
- Monitoring of abnormal heat generation of facilities.
- Monitoring of abnormal heat generation at the production line.
- Monitoring of heat generation and ignition of stored materials.
- Product temperature inspection in the inspection process (Temperature distribution, hot spot cool spot management).
Spec
- Measurement temperature range (℃): -20 - 300
- Measurement view angle (°): 60 x 60
- Space resolution (mrad): 21.8
- Operating temperature range (℃): -10 - 50
- Temperature minimum display (℃): 0.1
- Mass (g): 150
- Container protection grade: IP65 ( cable, When fixed screw is ***d)
- Power supply: DC12 - 24V
- Width x depth x height: 62 x 59 x 72mm
- Number of pixels: 48 x 47
- Frame time: 3Hz
- Temperature resolution (℃): 0.5
- Application: Abnormal heating monitoring of the facilities. Abnormal heating monitoring in the production line. Heating, ignition monitoring of stored items. Product temperature inspection in the inspection process (temperature distribution, Hot spot, cool spot management).
- Production country: Japan
- Weight: 150g
- Set content: Small thermal image sensor body, Lens cap 1 piece, Connector cap 1 piece, Fixed screw 1 piece, Platform 1 piece, Application software 1 sheet, LAN cable 2.5m x 1, Power, alarm output cable 2.5m x 1
- *Not allowed to be sold overseas. Allowed to be sold only in domestic markets.
- Manufacturer's model number: TPL0260EN
- Code number: 461-9706
