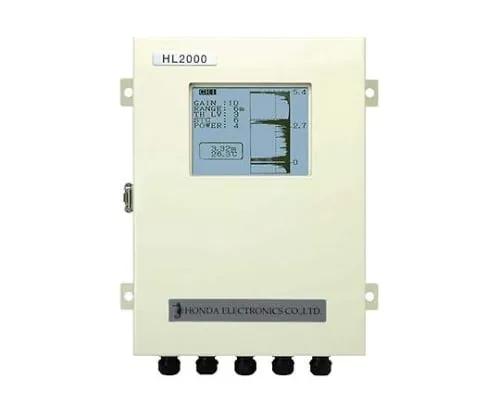

61-0173-86 Ultrasonic Wave Interface Level Meter (1ch Specification) HL2000
Product Description
Product Model: 61-0173-86Product Brand: Honda Electroni […]
Contact Us
Product Details
Product Model: 61-0173-86
Product Brand: Honda Electronics Co., Ltd.
Features
- The sludge interface in the settling tank was measured stably.
- Since the fixed sensor measures non-contact with the interface, there is no risk of entanglement with the rake.
- Wide range measurement up to 0.4~10 m from the sensor oscillation surface is possible.
- Since both the transducer and the sensor have no driving part and do not disturb the interface, stable measurement for a long time is possible.
- Stable interface measurement is possible by original calculation processing.
- By connecting two sensors, it is possible to measure the interface at two places. (The second sensor is optional)
- The sensor is equipped with a cleaning nozzle and mounting pipe as standard.
Spec
- Number of channels: 2 (second channel optional)
- Frequency: 400kHz
- Measurement target: Sludge interface
- Distance measurement range: 0.4 - 10m
- Resolution: Measurement: 1cm: Display: 1cm
- Data update cycle: 1 second
- Sensor oriented angle (half of full angle of sound pressure): 6°
- Power, voltage: 100 - 240VAC ±15%, Power consumption 10VA
- Display: LCD display (with backlight)
- Alarm output: Each up or down channel 2 points, AC250V, DC30V: 5A (relay contact)
- 4 - 20mA current output: Resolution: 16 bit: Each channel 1 point (maximum load resistance 450Ω)
- Interface: RS-232C (transmission distance: Within 10m)
- Ambient temperature range: Body -10 to 60℃: Sensor: -5 - 60℃
- Material: Body steel coating, Sensor case: PVC, Sensor cable: PVC
- Structure: Body IP54 equivalent, sensor: IP68 equivalent
- Outer dimensions: Body 280 (W) x 92.5 (D) x 322 (H) mm, sensor: φ80 x 95mm
- Sensor cable length: 20m
- Mass: Body 3.6kg, Sensor 2.2kg
